ECU Tuning Tool Buying Guide

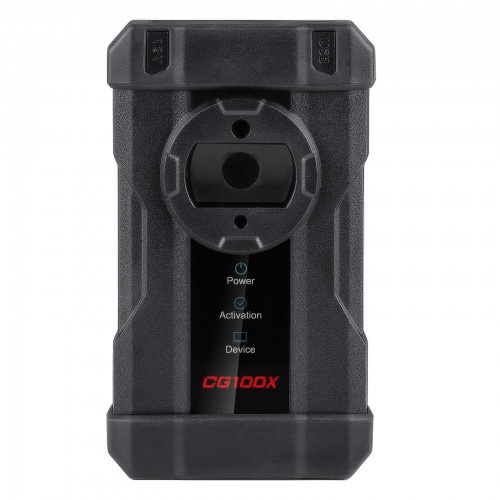

Which ECU programming tool should you take?Alientech Kess 3, Xhorse Multi-Prog, OBDSTAR DC706, CG FC200, CGDI CG PRO, CG100X, ECM Titanium 3.0, Orange 5 Super Pro?
Usually, it depends on what ECU list it has and connection/communication you want. Go on your reading and know more.
2024 Original ALIENTECH KESS3 ECU and TCU Programming Tool Slave/ Master via OBD, Boot and Bench Replaces KESS V2 KTAG
KESS3 is the new Alientech ECU and TCU Programmer via OBD, Bench and Boot Mode all in a single tool.
KESS3 combines 3 operating modes in one tool. OBD, Bench and Boot mode.
OBD– With the OBD mode, you can easily access all the ECU data through the diagnostic socket.
BENCH– A simple interface to the connector and you have complete access to the data of your ECU.
BOOT– This mode allows you to access all system data areas. Read, Write and Clone.
Xhorse Multi-Prog ECU & TCU Programmer Clone Tool with Free MQB48 License RH850 Expert Mode Batch Write Chips Updated of VVDI Prog
Xhorse MULTI-PROG Pro-level programmer is a reading and writing device for automotive chips, electronic modules, especially ECU modules. It integrates the programming, reading, writing and cloning functions of common automotive MCUs, automotive memory chips, common electronic modules and automotive ECU boards.
VVDI Multi PROG Pro-level programmer supports batch writing of chips, and batch writing of chips is often used in factories when production requires large-scale writing of chips. The types of writes supported are common memory series and common microcontroller series. For the specific usage of batch writing, please refer to the documentation of the factory usage mode that comes with the software.
Batch programming function: Multi-PROG devices support factory usage mode for batch programming of chips. In this mode, the functions of batch programming, offline programming, and file offline programming can be realized. The main difference between Xhorse VVDI PROG programmer and Xhorse MULTI-PROG Pro-level programmer is that MULTI-PROG Pro-level programmer has the batch programming function but VVDI PROG programmer does not.
OBDSTAR DC706 ECU ECM TCM BCM Cloning Programming Tool for Car and Motorcycle by OBD or Bench
OBDSTAR DC706 ECU tool is designed for vehicle ECM, TCM and body/other system for ECU flasher. It can read ECU info, R/W Eeprom/Dflash/Pflash/MAP, reset ECU(Virgin), calibrate mileage, read IMMO pincode, ECU recovery… It’s all by OBD or bench mode and makes ECU cloning easy.
foxFlash Super Strong ECU TCU Clone and Chiptuning Tool:
foxFlash is a new, unique and revolutionary tool for automotive professionals, tuners and engine calibration engineers. However, the foxFlash is so much more than just an ECU programming tool, it is also a perfect flashtool for reading/writing operations.

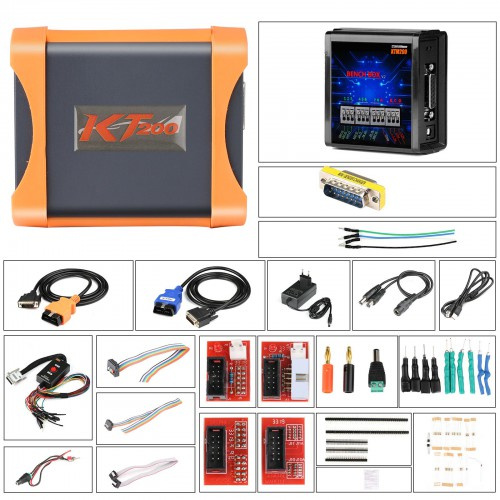

KT200 ECU Programmer Master Version:
KT200 ECU Chip Tuning Tool is new update ECU programmer supports ECU maintenance chip tuning, DTC code removal, OBD/BOOT/BDM/JTAG, and multiple protocols.
V1.27 PCMtuner ECU Programmer with 67 Modules Free Online Update with Free WinOLS Damaos VR Files Pinout Diagram
PCMtuner is poweful ECU Chip Tuning tool can read and write ECU data via OBD, BENCH, BOOT and OBDvr modes. PCMtuner performs a complete backup of ECU data, easy ECUs clones, and power upgrades. PCMTuner can support read and write gearboxes. It can also read and write the current most models on the market, covering European airs, Japanese cars, some American cars, Chinese cars, supporting some Volkswagen Audi gearboxes, and models equipped with delphi control systems.
IMG: The left one cable is KTMflash and the right one cable is KTMOBD cable.
KTMflash mainly works on new Siemens & gearbox, it needs to desolder ECU when reading and writing.
KTMOBD mainly read and write the Japanese ECU like Denso.
IMG: This one cable is V1.52 Renolink Renault ECU programmer via OBD.
Renolink has many features like UCH matching, airbag programming, engine ECU programming, key coding, key deletion, dashboard coding, eprom and flash reading and writing in Renault and Dacia vehicles.
Mpps v18 : MPPS-V18-Car-List-2016.pdf (135.0K)
MPPS covers MAIN + TRICORE + MULTIBOOT and a wide range of controllers incl. M3.8, M5.9, ME7xx, MED9, MED17, EDC15/16/17, Delphi, Siemens, Marelli, Delco, Sagem, Trionic and many others…
Kess v2 :
Ksuite V2.25 Kess V2 master car list
kess-car-full-list-20150501.xls (1,745.0K)
Kess covers all major brands and protocols including Line, CAN, EDC17 and MED17 and Ford J1850.
K-tag :
Ktag firmware V7.020 ksuite V2.25 (Improved onscreen message management & Implemented reading of gearbox sensor on Magneti Marelli 8GMK ECUs)
Ksuite V2.25 free download for Ktag
ktag firmware v6.070 with ksuite v2.13 supports BDM MOTOROLA MPC5xx, and BMW Gasoline F Chassis and Mercedes W222
Fgtech galletto v54 :fgtech-car-list-truck.pdf (84.6K)
FGTech Galletto 4 is a famous chip tuning tool for all cars, trucks, motorcycles, Marine, BDM MPCxx, BDM Boot Mode Tricore, checksum
New Version:Fgtech FW 0475 Galletto 4 Master V54 EU Version is unlocked version, support online operation, add much more and newer vehicles and ECU protocols than FW 0386, fixed all unstable problem and errors which FW 0386 had
Fgtech2 :
Fgtech 2 comes with all Cars, Trucks, Traktors and bikes. New Boot Mode System Tricore Infineon Tricore Sak TC1766, Sak TC1767 *new Infineon Tricore sak TC1792, TC1796, TC1797, TC1767. READ / WRITE New BMW by OBD2 port.
KTM OBD cable VS KTMFlash cable
| KTMOBD | KTMFLASH | |
| Image |  |
 |
| Read and write ECU data | √ | √ |
| Read gearbox data | √ | √ |
| read the chip data | √ | √ |
| Via OBD or Disassemble ECU | via OBD | Most need to disassemble ECU |
| Read the gearbox data on these types | Ford Mazda Honda / Acura Nissan Renault Subaru Mitsubishi China Toyota Denso FusoOthers (a little part): Kia/Hyundai, Chevrolet, SsangYong, VAG |
VAG: DQ200 (0AM) VAG: DQ200MQB/G2 (0CW) VAG: DQ250C (02E) K-Line VAG: DQ250E/F (02E) VAG: DQ250MQB (0D9) VAG: VL300/V30 (01J/0AN) K-Line VAG: VL300/V30 (01J/0AN) VAG: VL381 (0AW) VAG: DQ500 (0BH/0BT) VAG: DL501/G2 (0B5) VAG: DQ200/MQB Boot (MICRO) VAG: DQ200/MQB Boot (EEPROM) VAG: DQ200G2 Boot (MICRO) VAG: DQ200G2 Boot (EEPROM) VAG: DQ250E/F/MQB Boot (MICRO) VAG: DQ250E/F/MQB Boot (EEPROM) VAG: VL300/V30 BSL (FLASH) VAG: VL300/V30 BSL (EEPROM) VAG: VL381 Boot (MICRO) VAG: VL381 Boot (EEPROM) VAG: DL501 Boot (MICRO) VAG: DL501 Boot (EEPROM) VAG: DL501G2 Boot (MICRO) VAG: DL501G2 Boot (EEPROM) |
| Others | Read the BOOT mode on Infineon;Read the encrypted ECU password for Bosch / Continental, Kia/Hyundai / Mercedes-Benz | |
| Language | English, Russian | English, Russian |
| ECU tools/Communication | MPPS V18 | KESS v2 | KTAG | FgTech galletto v54 |
| OBD2 | √ | √ | √ | |
| BOOT | √ | √ | √ | |
| BDM | √ | √ | ||
| J-TAG | √ | √ | ||
| Tricore | √ |
| Communication/
ECU tools
|
OBD2 | BOOT | BDM | JTAG | Tricore |
| MPPS V18 | √ | √ | |||
| KESS v2 | √ | √ | |||
| KTAG | √ | √ | √ | ||
| FgTech 2 / Fgtech 4 |
√ | √ | √ | √ |
That is why you need buy more than one ecu programmers.
Kess V2 V5.017 Red PCB Plus KTAG Red PCB V7.020

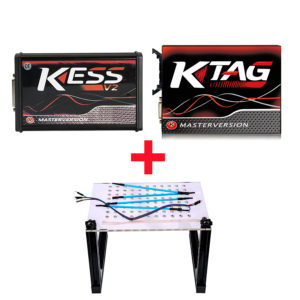

Kess V2 V5.017 Plus K-TAG Plus LED BDM Frame
Kess V2 Firmware V5.017 supports online service, can work with internet, no tokens need, newly add 140+ protocols. And V7.020 KTM100 KTAG supports many encrypted new car models works I.E Toyota 76FXXX, PSA 17.4.4, Ford E83, VW 17.5.5 (1766), Mercedes-Benz 276ECU, Toyota 76F, etc.100+ ECU types added. LED works for 12V. After you connect with the probe, disconnect 12V battery for LED, it will work. The probe pin is adjustable.
KESS v2 V2.47 Plus V7.020 KTAG Plus BDM Probe Adapters Full Set with Free ECM TITANIUM V1.61
Best ECU Programmer Combination Kit for 12V Cars and 24V Trucks including Red PCB EU Version Kess V5.017, Red PCB EU Version Ktag V7.020, BDM Probe Adapters Full Set, Offer ECM TITANIUM V1.61 Download Link for Free.
