How to Clone Jeep/Fiat IAW 10GF ECM with OBDSTAR DC706 on Bench

Confirmed! OBDSTAR DC706 with ECM V30.07 (newest software) can clone Jeep and Fiat IAW 10GF ECMs on Bench perfectly. OBDSTAR P003 Adapter, 12V power, and internet are required. Make sure the internet connection is normal during the operation.



1.OBDSTAR DC706 Clone Jeep IAW 10GF ECM

  • Device and accessories used:

OBDSTAR DC706 unit

P004 ECU Clone Jumper

OBDSTAR P003 Kit

Main cable

12V2A charger

Jeep IAW 10GF MPC5642+95640 ECM

obdstar dc706 clone jeep fiat iaw 10gf ecm on bench 1

  • Test procedure:

Connect 12V2A charger to DC706, and also connect with the internet

Select ECU Flasher>> ECM>> ECM V30.07>> Brand>> Quick search JEEP in the search box>> JEEP MAGNETI MARELLI IAW 10GF CAN MPC5642+95640 (BENCH+P003)

obdstar dc706 clone jeep fiat iaw 10gf ecm on bench 2 obdstar dc706 clone jeep fiat iaw 10gf ecm on bench 3

Click “Pinout” to check the wiring diagram, and connect OBDSTAR DC706 ECU Tool and Jeep ECM with the corresponding harness

obdstar dc706 clone jeep fiat iaw 10gf ecm on bench 4

Click “ECU info” to read the hardware version number, software number, fiat drawing, Homologation number, ISO code, programming date, ECU IMMO state, ECU Startup, and ECU diag.

obdstar dc706 clone jeep fiat iaw 10gf ecm on bench 5

Click “Start” to enter operation page.

Connect P003 and DC706 successfully

Read and write eeprom and flash OK

Finally, disconnect is also OK.

obdstar dc706 clone jeep fiat iaw 10gf ecm on bench 6 obdstar dc706 clone jeep fiat iaw 10gf ecm on bench 7 obdstar dc706 clone jeep fiat iaw 10gf ecm on bench 8

2.OBDSTAR DC706 Clone Fiat IAW 10GF ECM

  • Device and accessories used:

OBDSTAR DC706 unit

P004 ECU Clone Jumper

OBDSTAR P003 Kit

Main cable

12V2A charger

Fiat IAW 10GF MPC5642+95640 ECM

obdstar dc706 clone jeep fiat iaw 10gf ecm on bench 9



  • Test procedure:

Connect 12V2A charger to DC706, and also connect with the internet

Select ECU Flasher>> ECM>> ECM V30.07>> Brand>> Quick search FIAT in the search box>> FIAT MAGNETI MARELLI IAW 10GF CAN MPC5642+95640 (BENCH+P003)

obdstar dc706 clone jeep fiat iaw 10gf ecm on bench 10

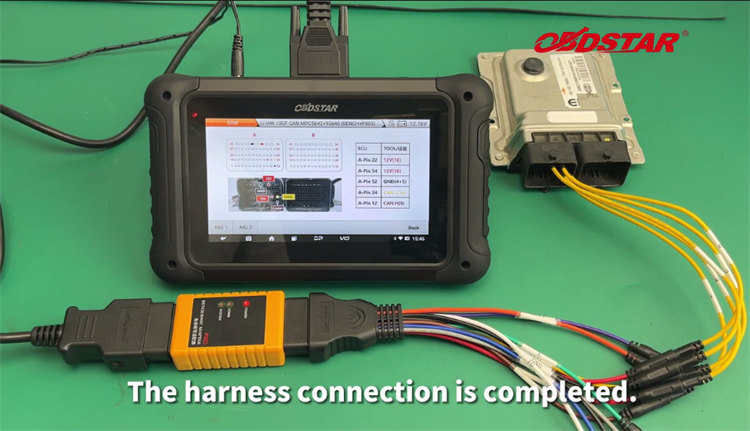

Follow the Pinout wiring diagram to connect OBDSTAR DC706 ECU Tool and Fiat ECM with the corresponding harness

obdstar dc706 clone jeep fiat iaw 10gf ecm on bench 11

Read out ECU info

obdstar dc706 clone jeep fiat iaw 10gf ecm on bench 12

The ECU connection between OBDSTAR P003 Adapter Kit and DC706 is successful

Read and write eeprom and flash successfully

Disconnect the ECU connection succeed

obdstar dc706 clone jeep fiat iaw 10gf ecm on bench 13 obdstar dc706 clone jeep fiat iaw 10gf ecm on bench 14obdstar dc706 clone jeep fiat iaw 10gf ecm on bench 15



OBDSTAR DC706 Jeep ECM Clone support list (newest):

Brand ECU Brand Type Dump ECU Info. Read eeprom Write eeprom Read flash Write flash Comm. Mode
JEEP CONTINENTAL GPEC3 MPC5674F BOOT
JEEP MAGNETI MARELLI 9GF CAN SPC564A70L7+95640 BENCH
JEEP MAGNETI MARELLI IAW 10GF CAN MPC5642+95640 BENCH+P003



OBDSTAR DC706 Fiat ECM Clone support list (newest):

Brand ECU Brand Type Dump ECU Info. Read eeprom Write eeprom Read flash Write flash Comm. Mode
FIAT BOSCH ME7.3.1 KLINE BOOTPIN 29F400BB+95080 BENCH
FIAT BOSCH ME7.3.H4 KLINE BOOTPIN 29F400BB+95080 BENCH
FIAT CONTINENTAL GPEC3 MPC5674F BOOT
FIAT MAGNETI MARELLI 8GMF HW02 CAN MPC5553+95640 BENCH
FIAT MAGNETI MARELLI 8GMW CAN MPC5565+95128 BENCH
FIAT MAGNETI MARELLI 8GSF CAN MPC5565+95640 BENCH
FIAT MAGNETI MARELLI 8GSW CAN MPC5565+95640 BENCH
FIAT MAGNETI MARELLI 9GF CAN SPC564A70L7+95640 BENCH
FIAT MAGNETI MARELLI IAW 10GF CAN MPC5642+95640 BENCH+P003
FIAT MAGNETI MARELLI IAW 4AF HW204 KLINE ST10F168+95160 BENCH
FIAT MAGNETI MARELLI IAW 4AF HW407 KLINE ST10F269+95160 BENCH
FIAT MAGNETI MARELLI IAW 59F HW<100 CPU32 KLINE 29F200BB+95080 BENCH
FIAT MAGNETI MARELLI IAW 59F HW303/HW306 KLINE ST10F168+95160 BENCH
FIAT MAGNETI MARELLI IAW 59F HW603/HW606 KLINE ST10F269+95160 BENCH
FIAT MAGNETI MARELLI IAW 5AF HW303/HW306 KLINE ST10F168+95160 BENCH
FIAT MAGNETI MARELLI IAW 5AF HW603/HW607 KLINE ST10F269+95160 BENCH
FIAT MAGNETI MARELLI IAW 5SF.XX KLINE ST10F280 BENCH
FIAT MAGNETI MARELLI IAW 5SF3 CAN ST10F280 BENCH
FIAT MAGNETI MARELLI IAW 5SF3 KLINE ST10F280 BENCH
FIAT MAGNETI MARELLI IAW 5SF8 CAN ST10F269 BENCH
FIAT MAGNETI MARELLI IAW 5SF9 CAN ST10F269 BENCH
FIAT MAGNETI MARELLI IAW 7GF CAN MPC5534+95640 BENCH+P003
FIAT MAGNETI MARELLI MJD 8F2 CAN MPC5565+95640 BENCH
FIAT MAGNETI MARELLI MJD 8F3 CAN MPC5565+95640 BENCH
FIAT MAGNETI MARELLI MULTIJET MJD 6F3 KLINE MPC563+M58BW016DB+95320 BENCH
FIAT MAGNETI MARELLI MULTIJET MJD 6F3 KLINE SPANSION MPC563+S29CL016J+95320 BENCH
FIAT MAGNETI MARELLI MULTIJET MJD 6JF KLINE MPC555+95320 BENCH
