How to Repair Benz GETRAG VGS2-FDCT TC1784 ECU with OBDSTAR DC706 on Bench?

Sometimes, Mercedes-Benz A-Class, B-Class, and GLA-Class vehicles may experience a situation where the car can be started but cannot be put into gears. This is caused by a loss of transmission ECU data due to a discharged car battery. The fault codes read with a diagnostic tool will reveal DTC P051300. OBDSTAR DC706 can repair the data to solve this issue easily.



Benz ECU model:

i.e. Mercedes-Benz GETRAG VGS2

Device and accessories required:

OBDSTAR DC706 ECU Tool

OBDSTAR P004 Adapter and ECU Clone Jumper

Main cable

12V 5A power supply (DC)

obdstar dc706 repair benz vgs2 fdct tc1784 1

Operation method:

In Bench mode



Operation guide:

Select ECU Flasher>> TCM>> TCM V30.27>> vgs2>> BENZ GETRAG VGS2-FDCT TC1784

obdstar dc706 repair benz vgs2 fdct tc1784 2 obdstar dc706 repair benz vgs2 fdct tc1784 3

Click Guide to check the operation instruction and wiring diagram

Pinout diagram:

ECU TOOL
A-Pin 5 12V (16)
A-Pin 2 GND (4+5)
A-Pin 1 CAN L (14)
A-Pin 3 CAN H (6)

obdstar dc706 repair benz vgs2 fdct tc1784 4

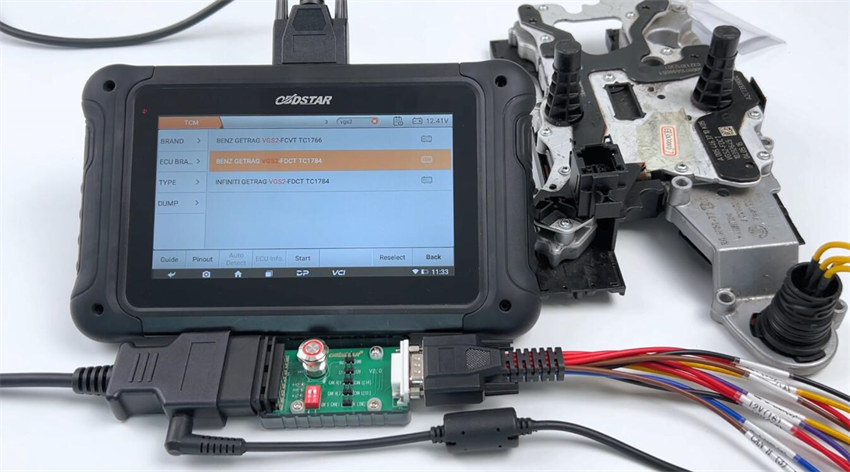

Follow the diagram to connect P004 Adapter and Benz TCM via OBDSTAR P004 ECU Clone Jumper, and connect to DC706 ECU Tool via the main cable, and then connect power supply to P004 Adapter

obdstar dc706 repair benz vgs2 fdct tc1784 5 obdstar dc706 repair benz vgs2 fdct tc1784 6

After connection, click “Start” and select “BENCH” and “P004”

obdstar dc706 repair benz vgs2 fdct tc1784 7

Turn on the switch button of OBDSTAR Adapter

Make sure DC706 is connected to internet

Click “Connect” to connect ECU

Follow the prompt to turn off ignition and then turn on

ECU is connected successfully

obdstar dc706 repair benz vgs2 fdct tc1784 8

Then start to read INT flash (TC1784) and INT eeprom (TC1784) separately

Save the original data after reading

obdstar dc706 repair benz vgs2 fdct tc1784 9 obdstar dc706 repair benz vgs2 fdct tc1784 10

Finally, click “Repair data” to repair the Benz TCM data with OBDSTAR DC706 ECU Programmer.

obdstar dc706 repair benz vgs2 fdct tc1784 11

Done!
