For modern BMW B48, B57, and B58 engines, working with encrypted Bosch MD1 and MG1 ECUs equipped with TriCore AURIX TC2xx processors such as TC298 and TC299 can be made much easier with FLEX.

The process is completed in two stages: first, perform the initial Boot Glitch unlock on the bench by opening the ECU, removing the required resistor, and soldering the E1 wire. Once unlocked, the ECU can then be accessed in standard Bench Mode for future reading, writing, and tuning—without needing to open the ECU again.

Locked MD1 MG1 ECU Supported Models:

All Bosch: MD1CE101 (TC299)
Iveco: MD1CS069 (TC299)
Ford: MD1CS005 (TC298)
BMW: MG1CS024 (TC298), MG1CS201 (TC298), MD1CP032 (TC299)
VAG Group: MG1CS002 H80 (TC298), MG1CS031 H80 (TC298), MG1CS163 (TC298), MD1CS004 H80 (TC298)
Stellantis: MD1CS003 (TC298), MG1CS042 (TC298)
JLR: MD1CP007 (TC298), MD1CP017 (TC298), MG1CS028 (TC298)
Kia / Hyundai: MD1CS012 (TC298)

Note: Here are only some models, for the complete vehicle list, click here to check.

How to Unlock BMW Encrypted MD1 MG1 ECU with Flex Tuning Tool?

Step 1: Pick the Right Protocol

Start by opening Magic Motorsport Flex software.

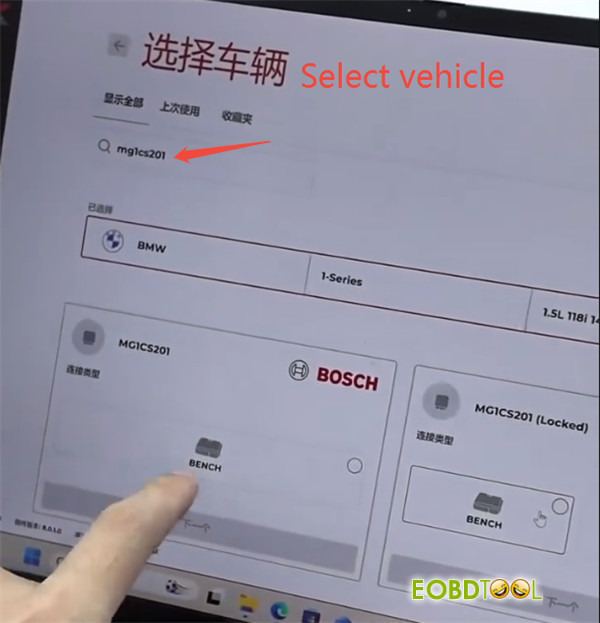

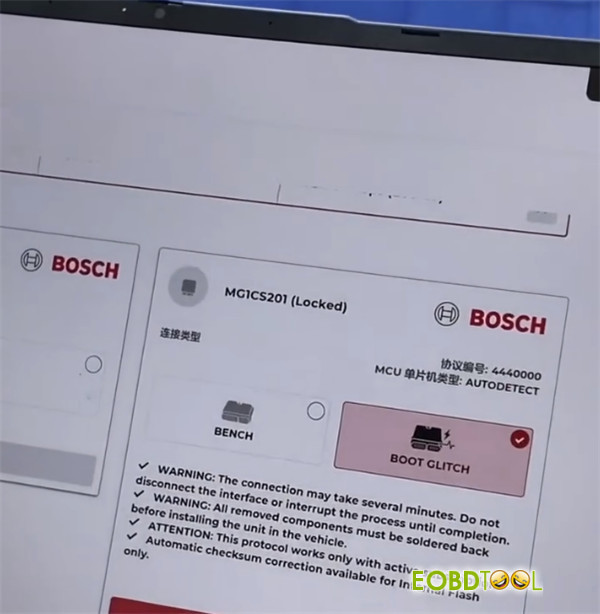

Search for mg1cs201 or mg1cs024 and choose the protocol marked (LOCKED):

MG1CS201 (LOCKED) for B48 engines
MG1CS024 (LOCKED) for B58 engines

Select BOOT Glitch mode first. Direct Bench mode won’t work until the initial boot unlock is complete.

Step 2: Hardware Setup & PCB Modification

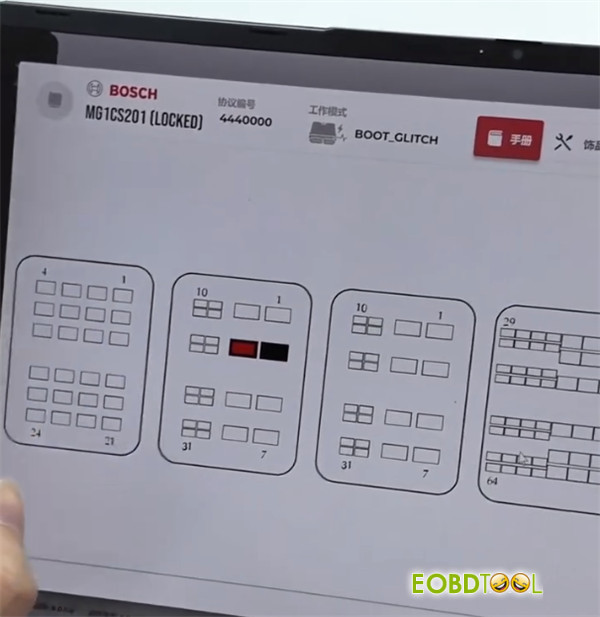

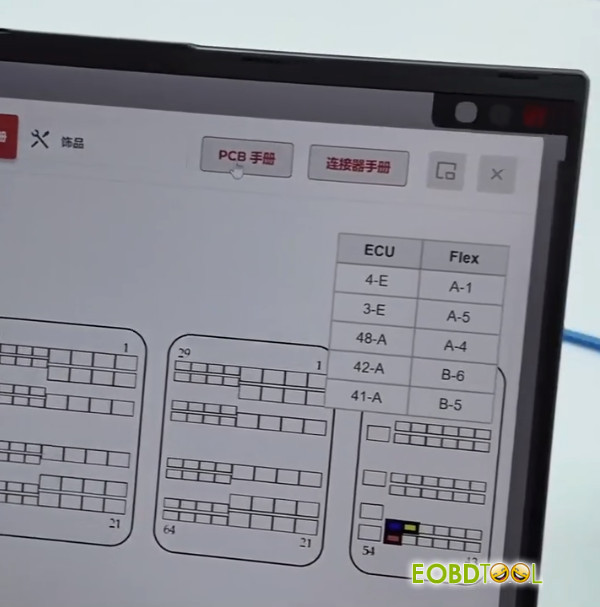

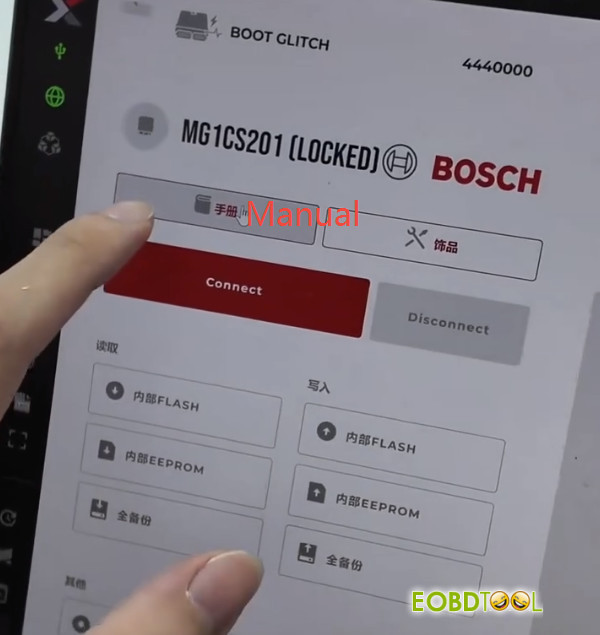

Open the Manual tab in FLEX to check the pinout diagram for your board version.

Wire up standard Bench power and the two CAN lines.

Remove the top ECU cover to access the PCB.

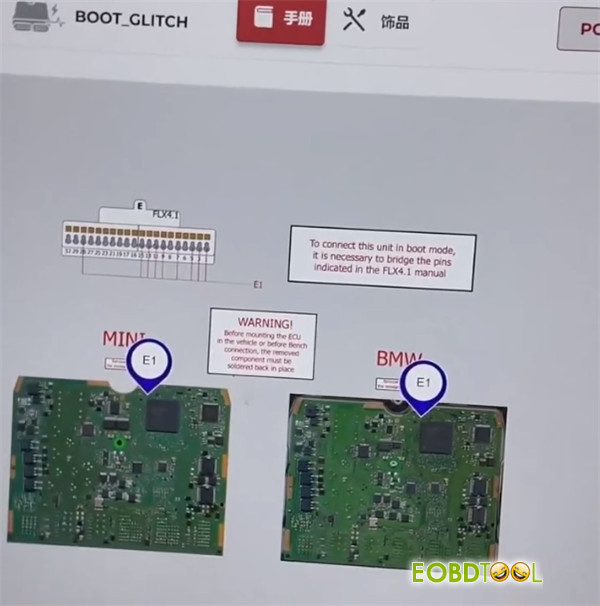

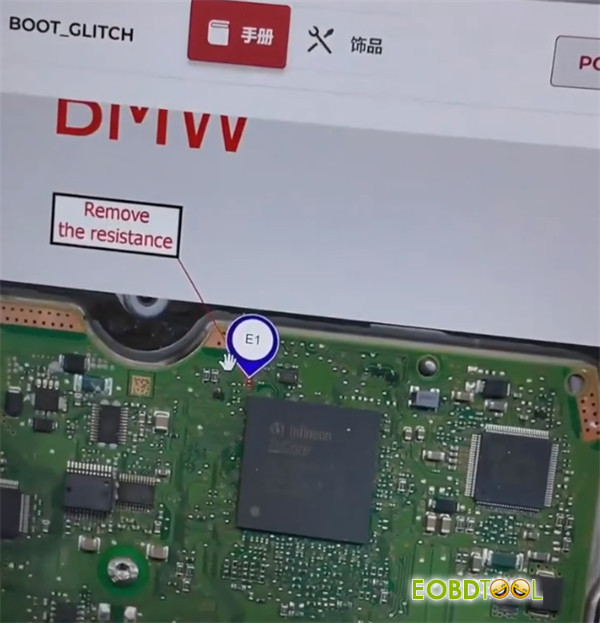

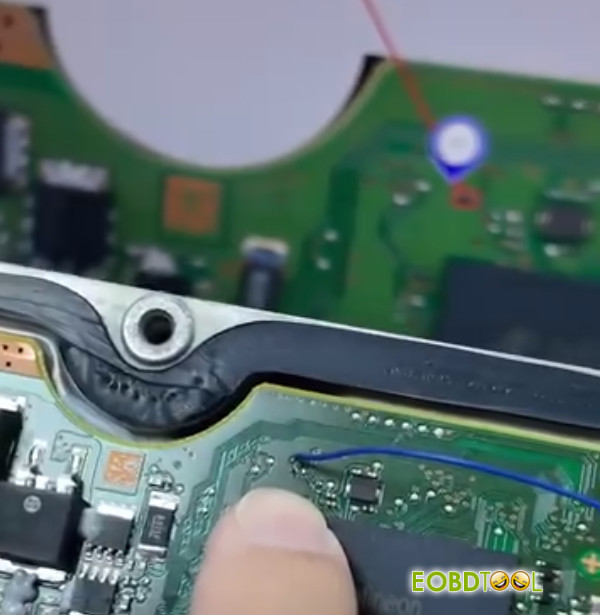

Resistor & Wire: Locate the specific SMD resistor indicated in the diagram (B48 and B58 layouts differ slightly). Unsoldered this resistor, then solder the E1 wire directly to the designated pad.

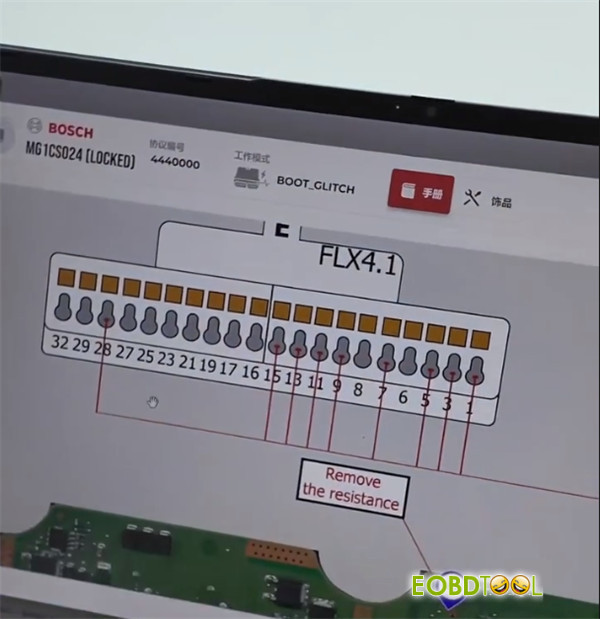

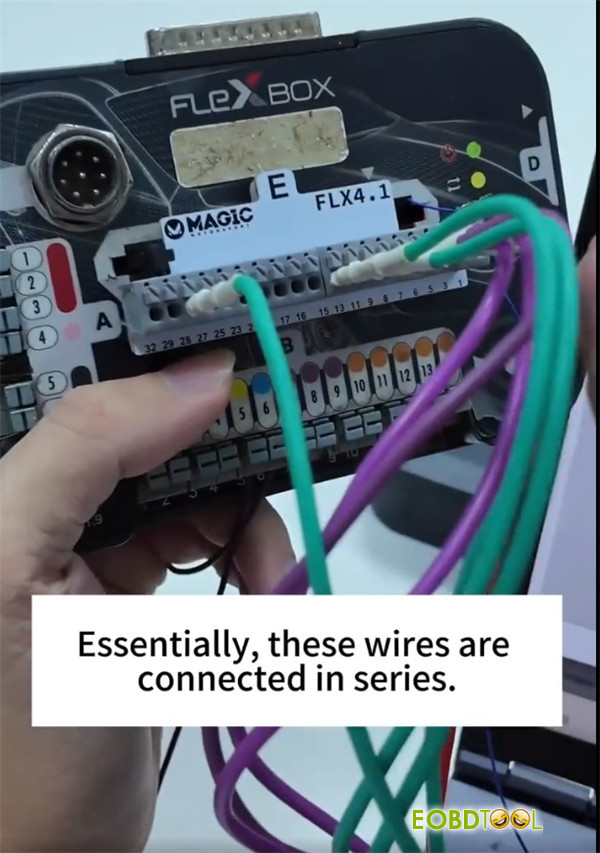

Connect the FLEX harness to Port E according to your pinout (e.g., pins 15 and 28) and link the lead to your E1 wire.

Step 3: Memory Backup, Unlock & Bench Conversion

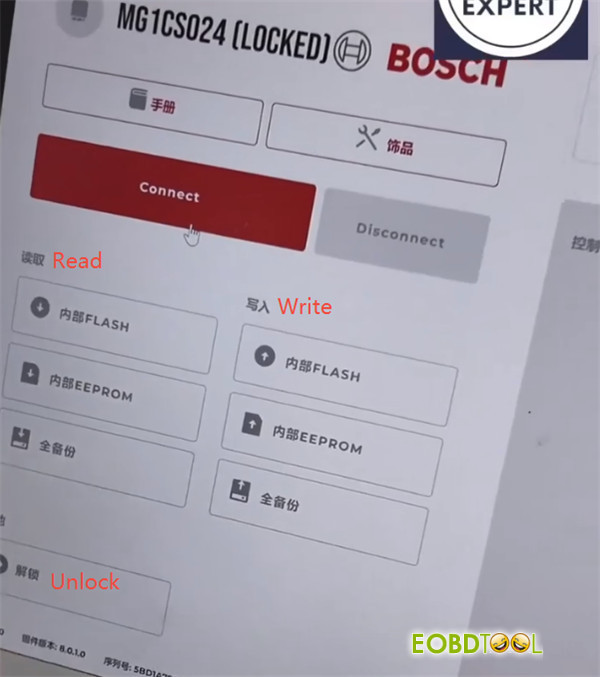

Hit Connect in Flex software.

Make a complete backup of the ECU memory or save the Internal Flash file.

Run the unlock process using BOOT GLITCH protocol.

Disconnect the boot harness, solder the SMD resistor back onto the board, and seal up the ECU casing.

You can now read, write, and tune the ECU directly in Bench Mode.

Important Reminder Checklist

Keep Power Constant: The unlock procedure takes a few minutes. Ensure your bench power supply is stable to prevent communication drops.
Don’t Forget the Resistor:Re-soldering the removed SMD resistor back onto the board is mandatory before reinstalling the ECU in the vehicle.
Subscription & Checksums:This function needs an active FLEX subscription. Automated checksum correction is available for Internal Flash files.
