FoxFlash Read Full VW EDC16U34 OK on Bench

Is it possible to read VOLKSWAGEN EDC16U34 by Foxflash? via OBD or bench?



Yes. Foxflash tool supports Volkswagen Bosch EDC16U34 via OBD, Bench, and JTAG.

foxflash read vw edc16u34 on bench 1



It has been tested OK on bench.

This is the ECU tested.

foxflash read vw edc16u34 on bench 2



We need to download, install, register, and activate foxflash software for the first time using.

There is two software required to install.

First, install FoxFlash Manager Tool from www.dfb-technology.com/download.html.

And then download foxflash testing software, install the driver and activate it in the Foxflash Manager APP.

Click here to check the detailed guide.



After installation, connect FoxFlash bench box, Foxflash ECU Chip Tuning Tool, BMW ECU, and computer correctly.

foxflash read vw edc16u34 on bench 3

foxflash read vw edc16u34 on bench 4

foxflash read vw edc16u34 on bench 5

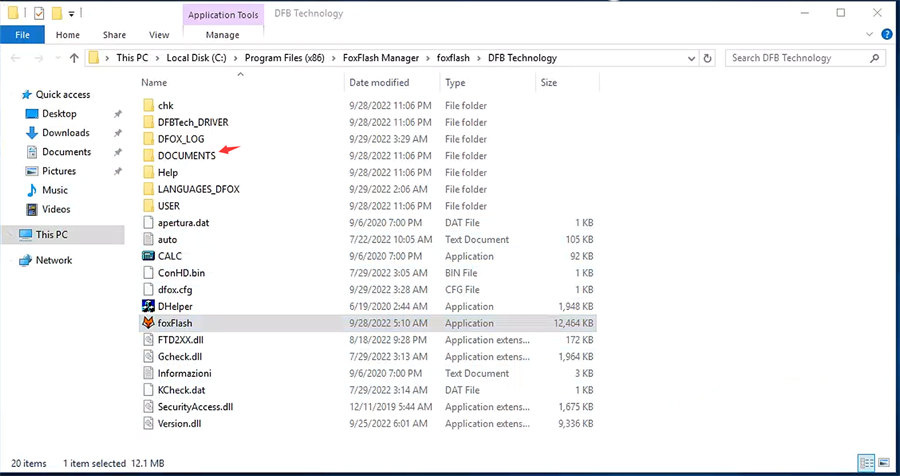

The wiring diagram can be found under C disk/Program files (x86)/FoxFlash Manager/foxflash/DFB Technology/DOCUMENTS directory

foxflash read vw edc16u34 on bench 6

foxflash read vw edc16u34 on bench 7

Make sure to connect internet as well



Select driver, car maker, vehicle model to enter the main operation page

First connect and then read all

OK, read out the ECU is EDC16U34.

foxflash read vw edc16u34 on bench 8

foxflash read vw edc16u34 on bench 9

I will test the write later.



Some customers say it’s easy to read/ write this VW EDC16U34 on OBD with foxflash ECU programmer, no need to remove it from the car. I think so. I just do this on bench for the test. You can try it on your own!
