The differences between the Kess V2 5.017 red boards.
Kess V2 5.017 Version 1: Most of the boards look like this

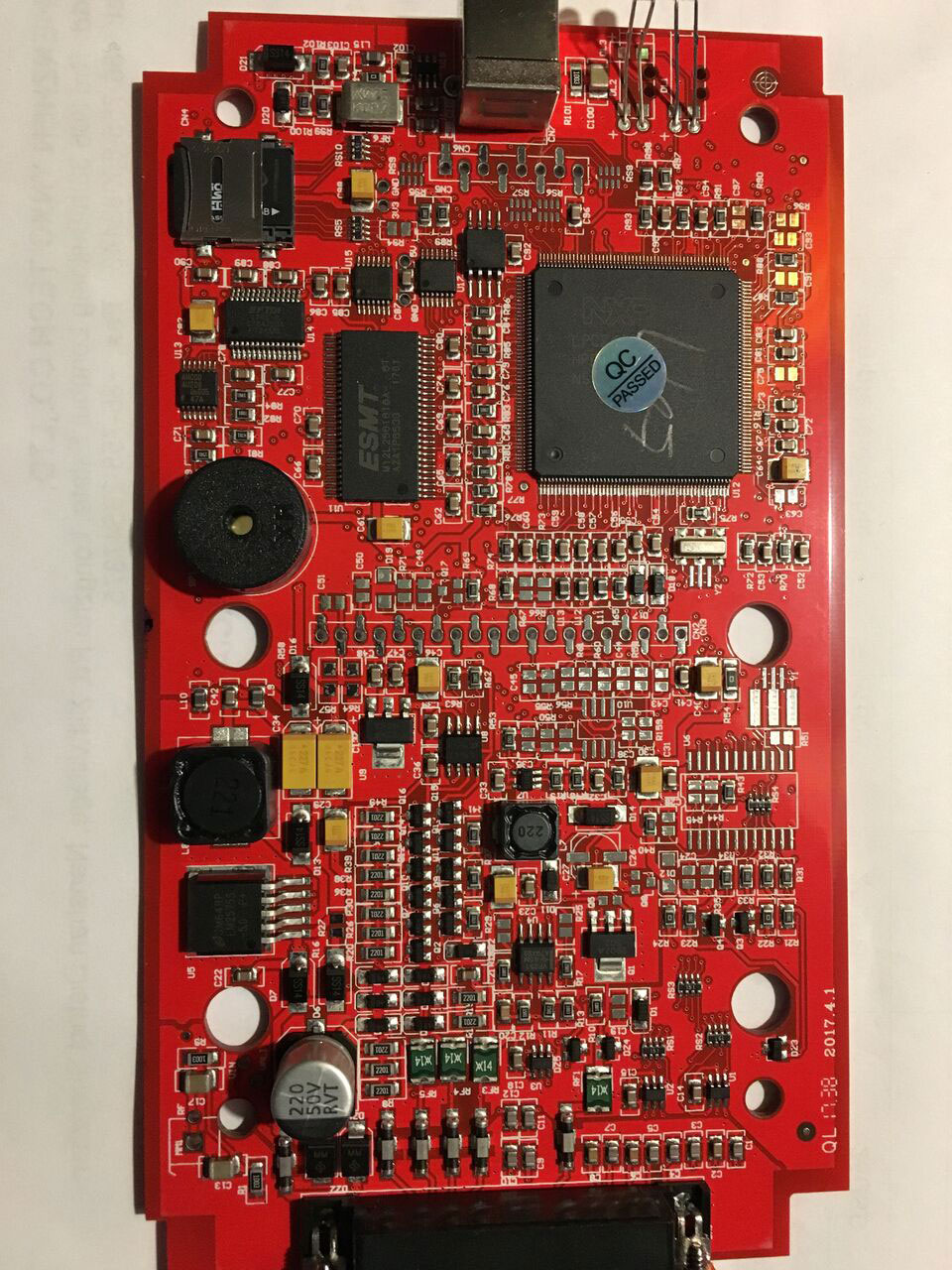

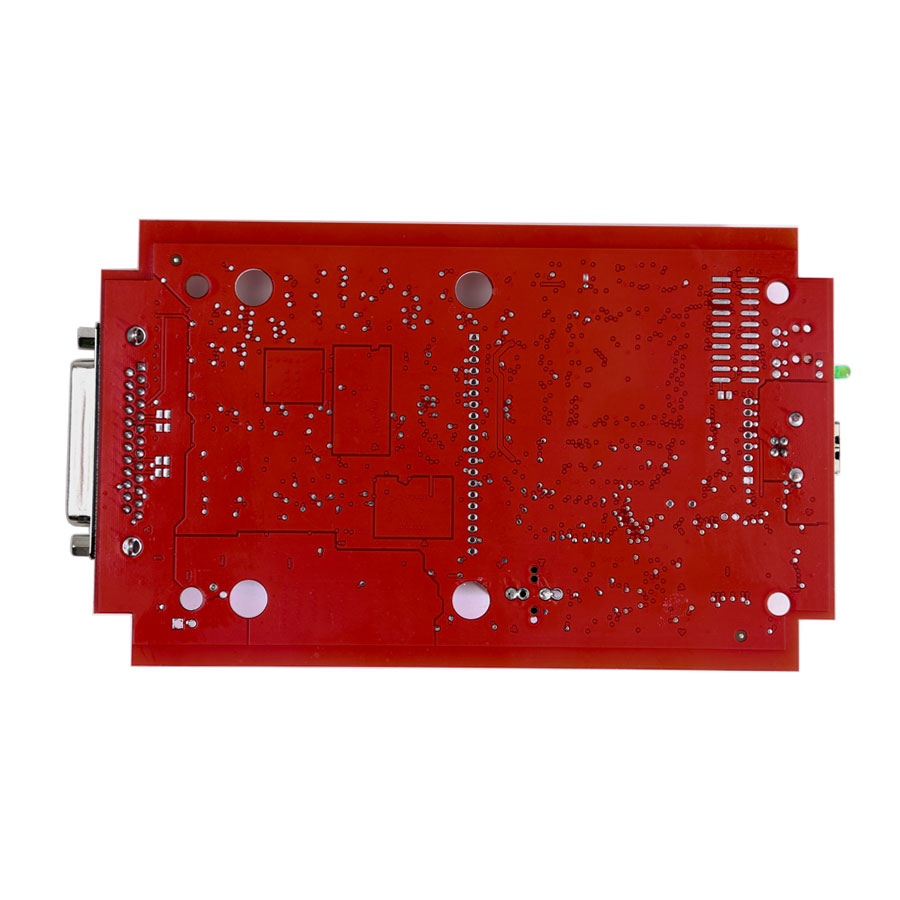

Kess V2 5.017 Version 2: board with different reworked parts:
1.the left upper corner and the lower right corner notch size is not the same
2.More than buzzer
3.WFs = Infineon, BCR112 NPN Digital Transistor
4.27E = ON Semiconductor NUP2105LT1G
5.6DW = NXP BC817,215 NPN Bipolar Transistor
6.A6c =MMUN2113LT1G / MMUN2113LT3G
7.K5B = BC807-25-7-F PNP Bipolar Transistor
8.Using imported Japanese Murata filter NFE61PT472C1H9L
Actually, version 1 is the old version; version 2 is the new one, updated and improved based on version 1. the new version works much more better than the old. Read how uses think of it and it talks the truth.

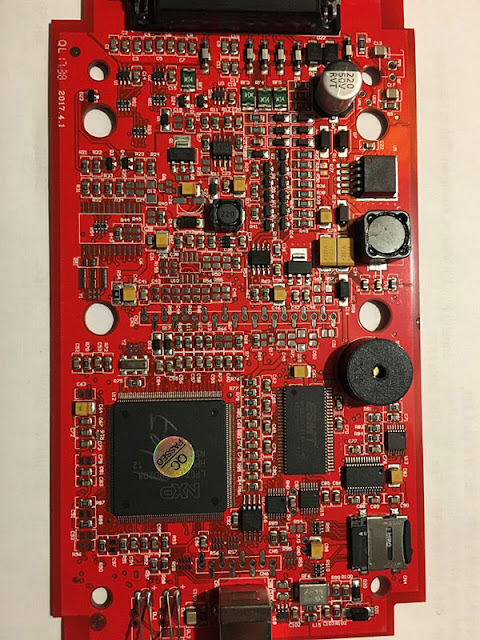

Review of Kess V2 5.017 with NEW red PCB:

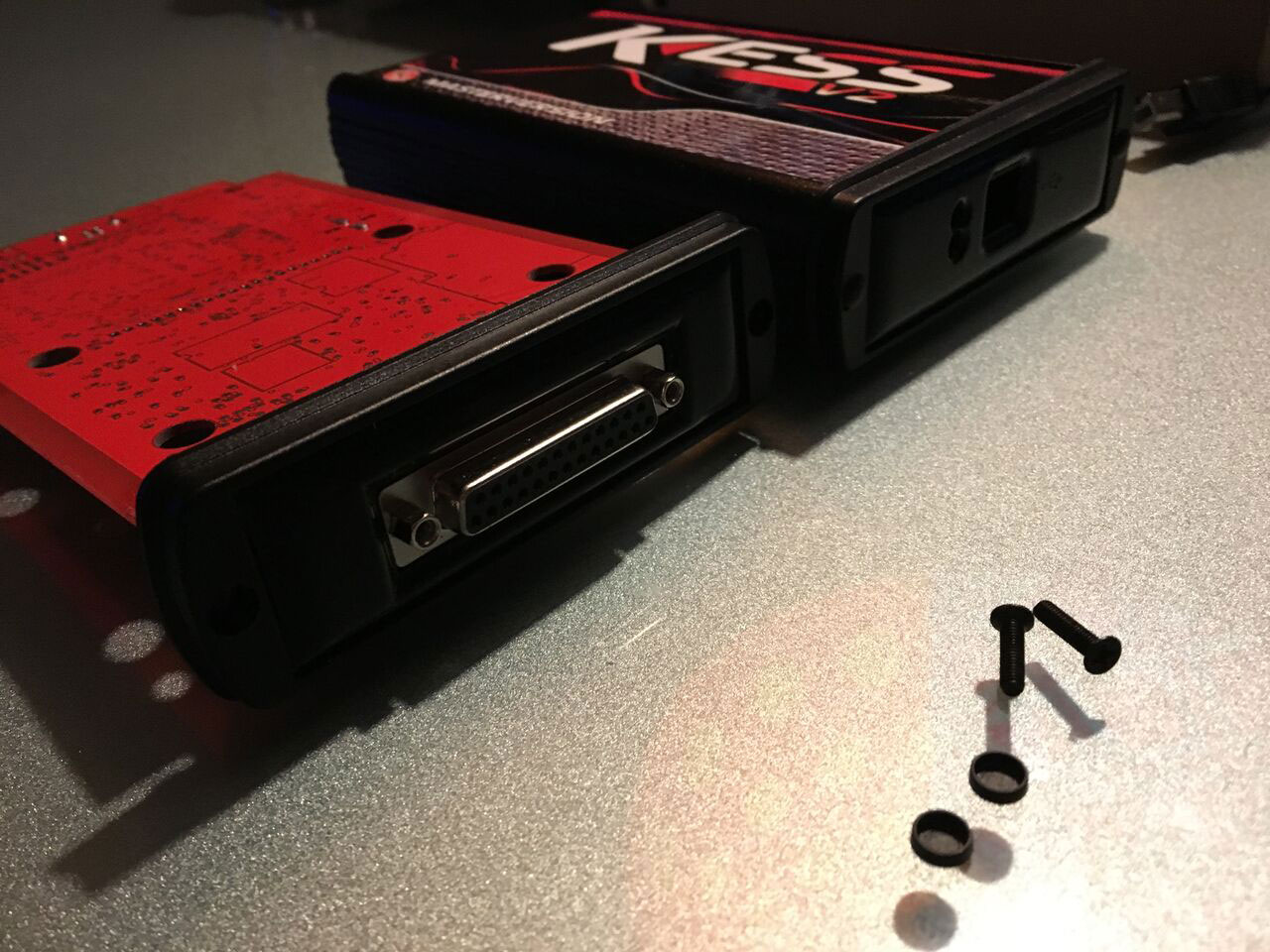

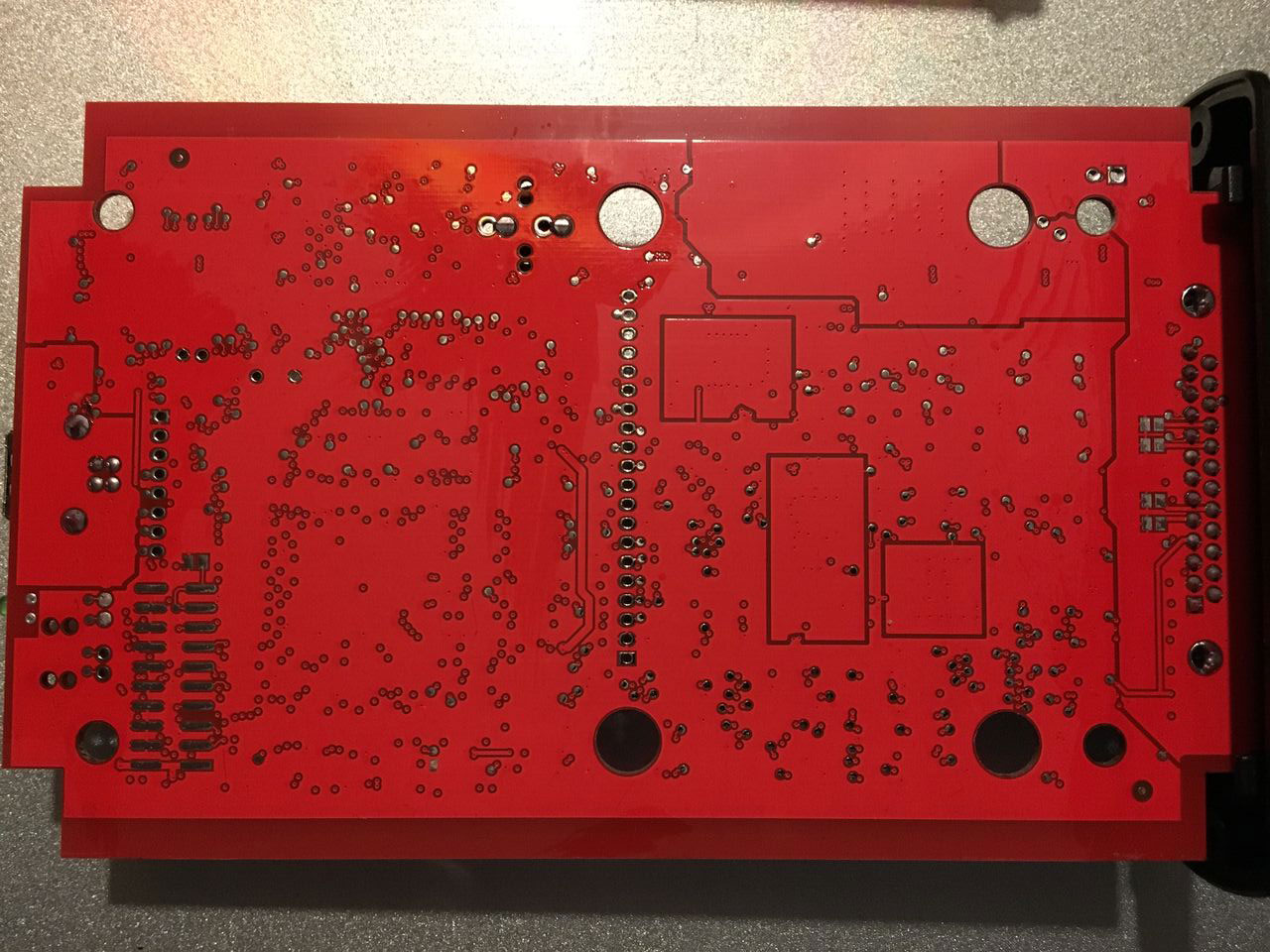

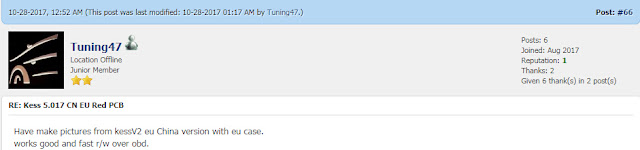

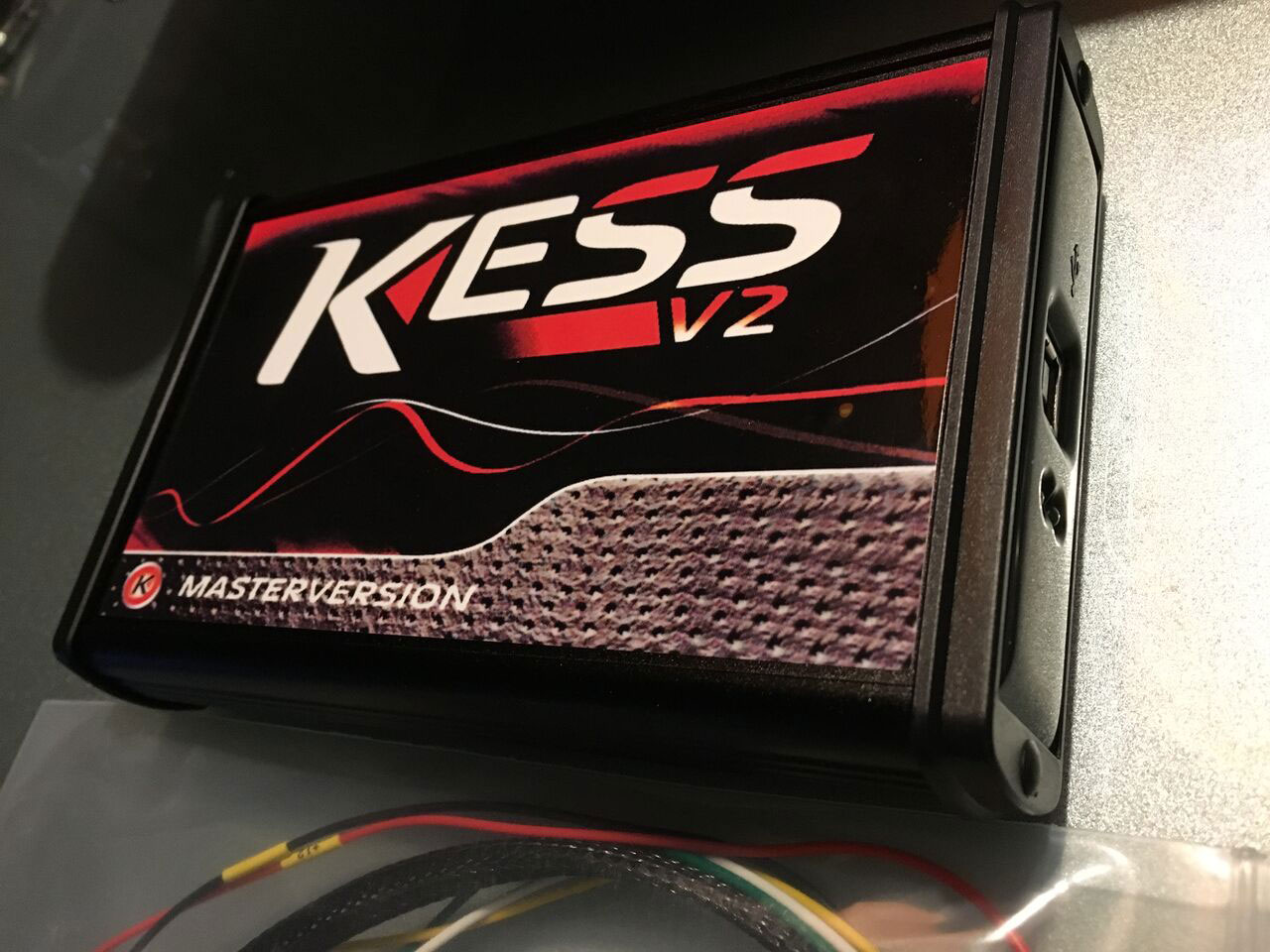

Have make pictures from kessV2 eu China version with eu case.
works good and fast r/w over obd.

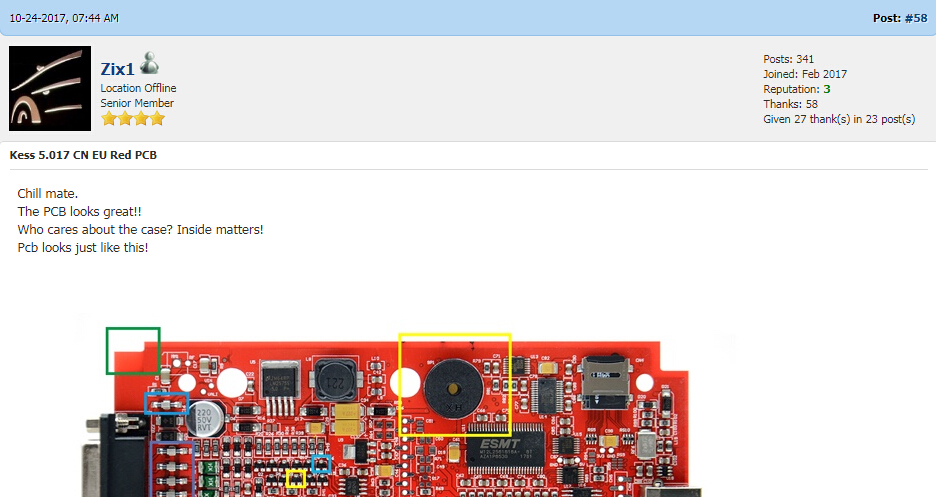

The PCB looks great!!
Who cares about the case? Inside matters!
Pcb looks just like this!
PCB quality ok, not proper enclosure as advertised.

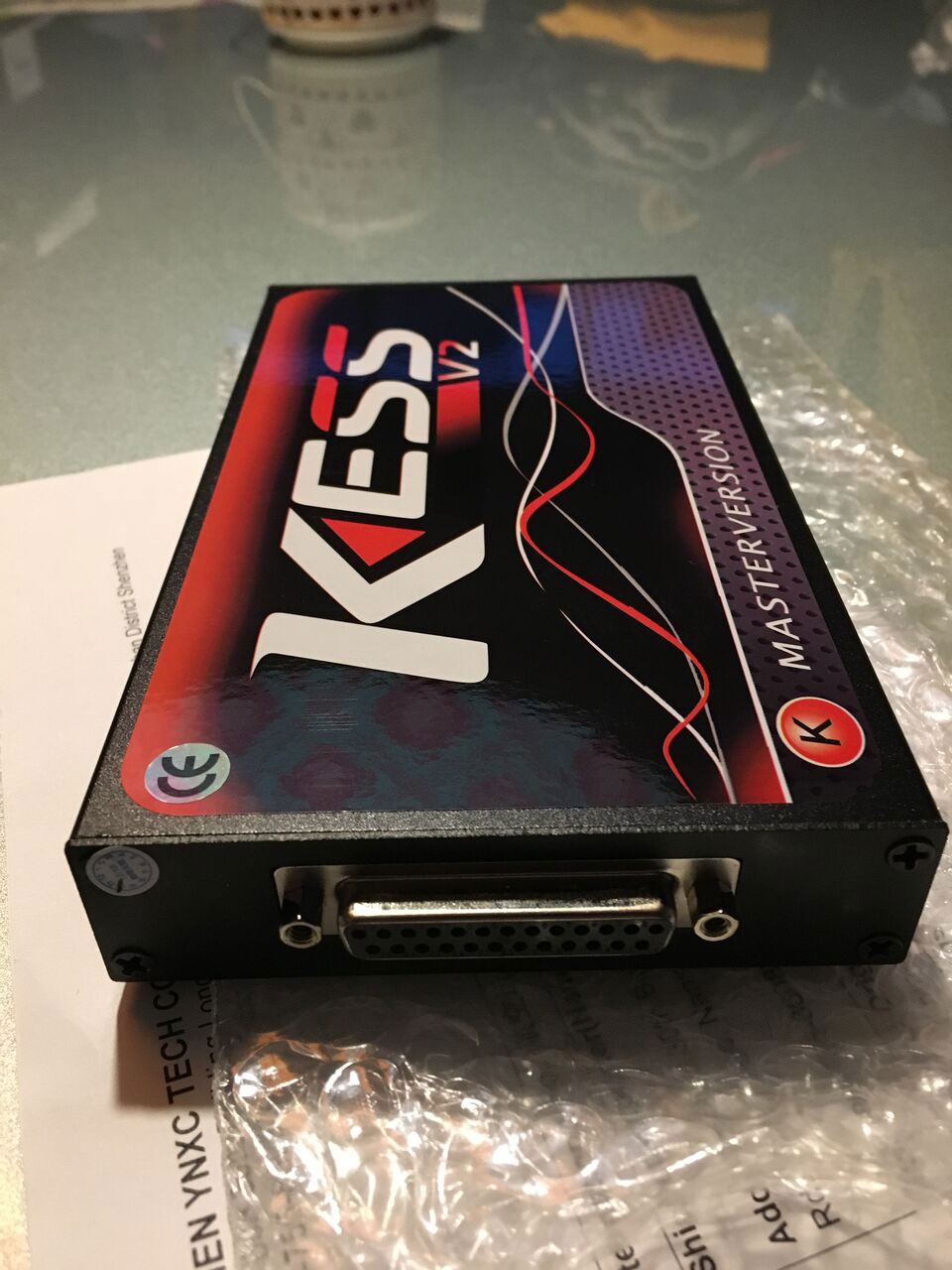

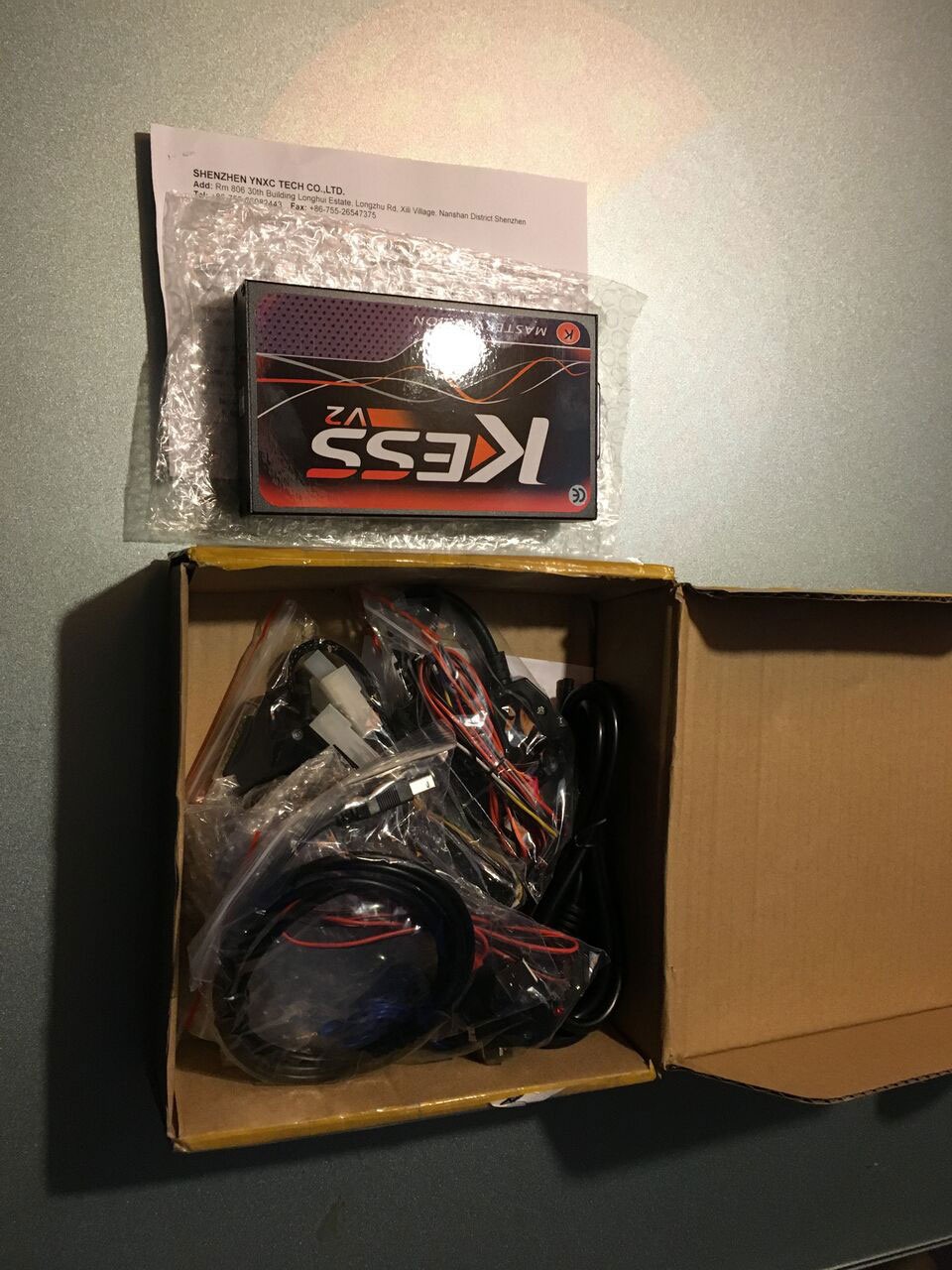

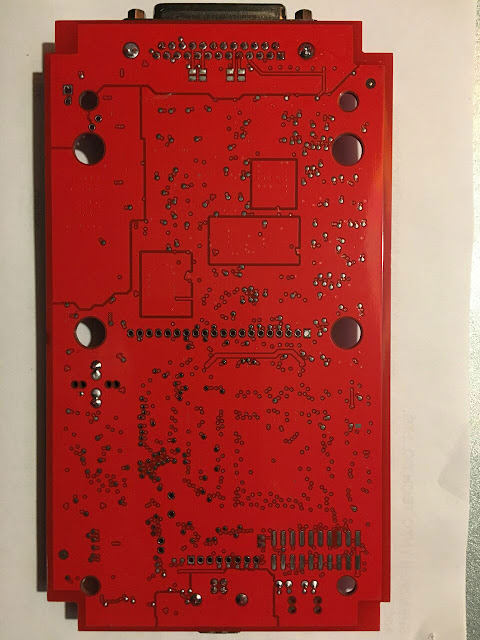

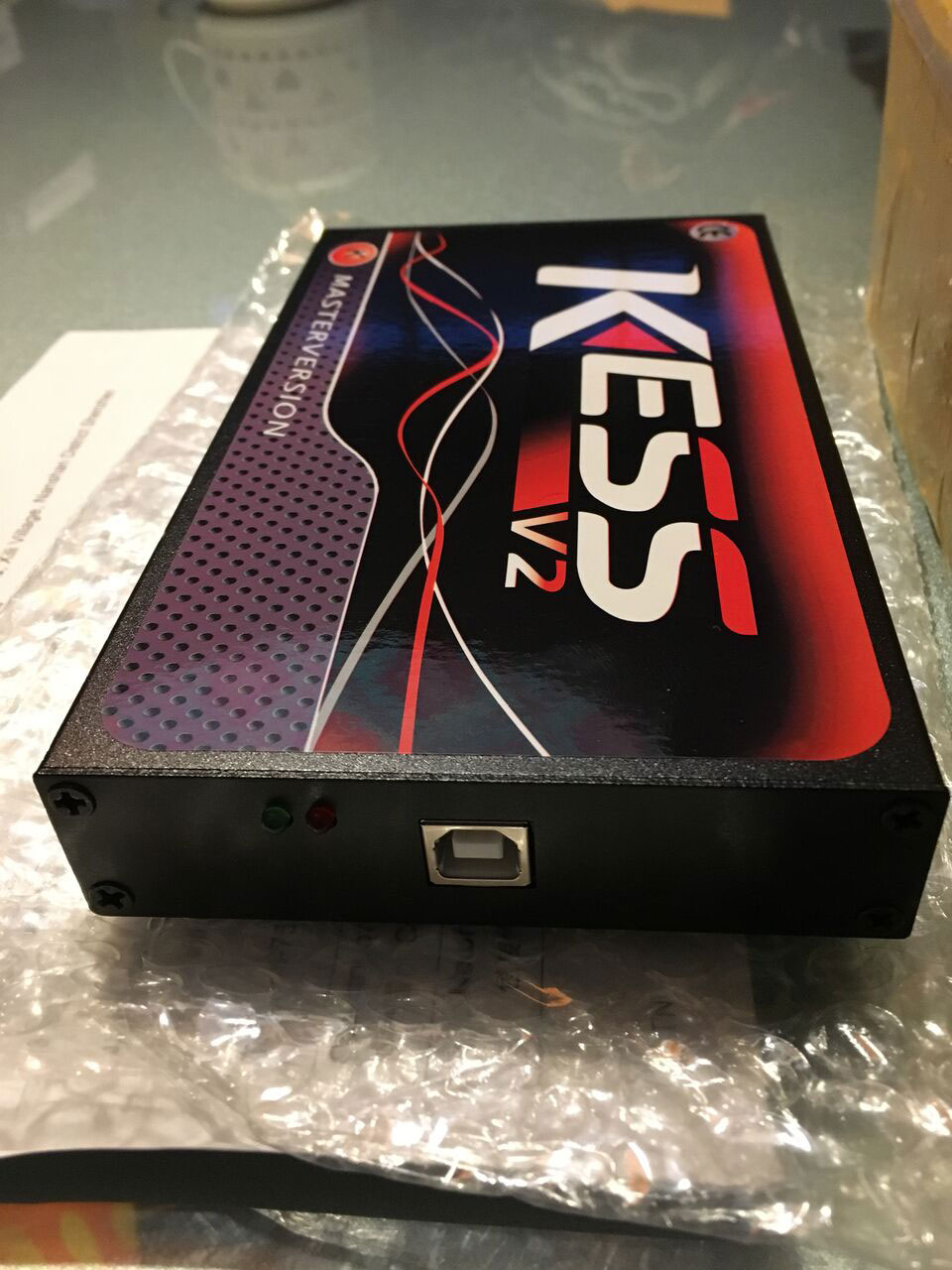

This is last one i received from China today looks pretty ok for 145$:
So, the nice case is the same as the ori to have things but it doesn’t matter if the pcb is well done. Don’t think you have to rework something.
You should have the Kess 5.017 NEW version (version 2) now if you need kess. Forget the old version (version 1)
