OBDSTAR DC706 Clone Mercedes-Benz DELPHI CRD3P.D1 TC1793+25LC256 ECM in Bench

OBDSTAR DC706 ECU Tool is able to read and write INT flash & EXT EEPROM, and reset virgin on the Mercedes-Benz DELPHI CRD3P.D1 TC1793+25LC256 ECM in Bench mode.

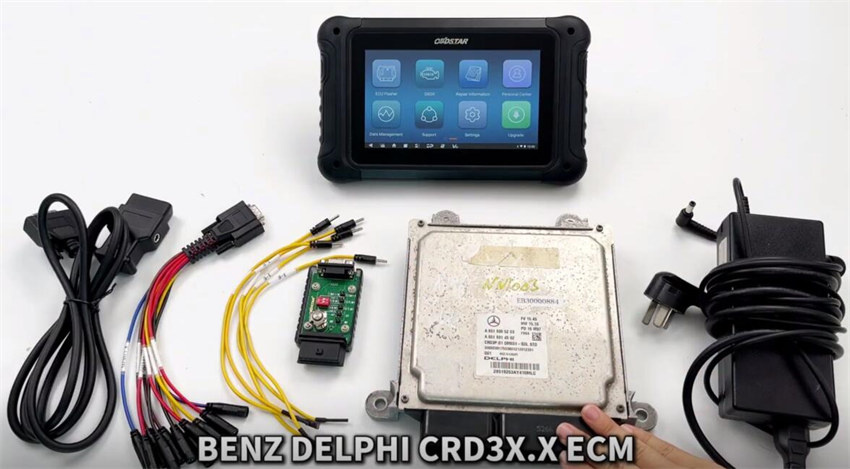

Requirement:

Benz ECM

OBDSTAR DC706 with ECM V31.00 (or above)

OBDSTAR P004 Adapter and ECU Clone Jumper

12V 5A Power Supply (DC)

Main cable

obdstar dc706 clone benz delphi crd3p.d1 1 1



Operation guide:

Select ECU Flasher>> TCM>> TCM V31.00

obdstar dc706 clone benz delphi crd3p.d1 2 1

Input crd3p.d1 in the search box to get the ECM type desired (BENZ DELPHI CRD3P.D1 TC1793+25LC256)

obdstar dc706 clone benz delphi crd3p.d1 3 1

Pinout diagram:

ECU TOOL
B-Pin5, 15 12V (16)
B-Pin 2 GND (4+5)
B-Pin 54 CAN L (14)
B-Pin 41 CAN H (6)

obdstar dc706 clone benz delphi crd3p.d1 4 1

Follow the Pinout diagram to connect OBDSTAR P004 ECU Clone Jumper and Benz CRD3P.D1 ECM

And connect P004 Adapter to P004 Jumper and DC706 ECU Tool via main cable

Supply the 12V power supply to DC706 via the main cable as well

obdstar dc706 clone benz delphi crd3p.d1 5 1

After connection, turn on the switch button on P004 Adapter, and click “Start”

Select Bench and P004 mode

obdstar dc706 clone benz delphi crd3p.d1 6 1

Click “Connect” to connect ECU, turn off and turn on P004 Adapter switch button according to the on-screen prompts

ECU connection is successful, start to perform the corresponding read and write operations.

obdstar dc706 clone benz delphi crd3p.d1 7 1

Read INT flash (TC1793) and EXT EEPROM (25LC256) separately

After saving the data, continue to select the corresponding original data to write into the new Benz ECM

obdstar dc706 clone benz delphi crd3p.d1 8 1

obdstar dc706 clone benz delphi crd3p.d1 9 1 obdstar dc706 clone benz delphi crd3p.d1 10 1 obdstar dc706 clone benz delphi crd3p.d1 11 1

Finally, disconnect the ECU.



OBDSTAR DC706 Support List for Benz ECM (ECM V31.10):

Brand ECU brand Type Dump R & W INT flash R & W INT eeprom R & W EXT flash R & W EXT eeprom CS Other COMM. MODE Adapter
BENZ BOSCH DCU17PC42 TC1724 BENCH P003/P003+/MP001
BENZ BOSCH EDC15C6 KLINE 29F800BT+95P08 OBD/BENCH P004
BENZ BOSCH EDC16C2 MPC555 BENCH P003+/MP001
BENZ BOSCH EDC16C32 MPC561(2) BENCH P003+/MP001
BENZ BOSCH EDC16CP31 MPC563(4) BENCH P003+/MP001
BENZ BOSCH EDC16CP36 MPC563(4) BENCH P003+/MP001
BENZ BOSCH EDC17C42 TC1767 Write VIN BENCH P003/P003+/MP001
BENZ BOSCH EDC17C43 TC1797 BENCH P003/P003+/MP001
BENZ BOSCH EDC17C60 TC1793 BENCH P003/P003+/MP001
BENZ BOSCH EDC17C66 TC1793 BENCH P003/P003+/MP001
BENZ BOSCH EDC17C84 TC1782 BENCH P003/P003+/MP001
BENZ BOSCH EDC17CP01 TC1796 BENCH P003/P003+/MP001
BENZ BOSCH EDC17CP10 TC1796 BENCH P003/P003+/MP001
BENZ BOSCH EDC17CP46 TC1797 BENCH P003/P003+/MP001
BENZ BOSCH EDC17CP57 TC1793 BENCH P003/P003+/MP001
BENZ BOSCH EDC17CP60 TC1793 BENCH P003/P003+/MP001
BENZ BOSCH ME17.7 TC1796 BENCH P003/P003+/MP001
BENZ BOSCH MED17.7.1 TC1797 BENCH P003/P003+/MP001
BENZ BOSCH MED17.7.2 TC1797 Write VIN BENCH P003/P003+/MP001
BENZ BOSCH MED17.7.3 TC1797 BENCH P003/P003+/MP001
BENZ BOSCH MED17.7.3.1 TC1797 Write VIN BENCH P003/P003+/MP001
BENZ BOSCH MED17.7.5 TC1793 BENCH P003/P003+/MP001
BENZ BOSCH MED17.7.7 TC1793S BENCH P003/P003+/MP001
BENZ BOSCH MED17.7.8 TC1797 BENCH P003/P003+/MP001
BENZ DELPHI CPC2.X TC1793 BOOT P003/P003+/MP001
BENZ DELPHI CRD2.XX MPC5566+25LC256 Reset Virgin BENCH/BOOT P004/P003/P003+/MP001
BENZ DELPHI CRD3.E1 TC1793+25LC256 Reset Virgin BENCH P004
BENZ DELPHI CRD3.F1 TC1793+25LC256 Reset Virgin BENCH P004
BENZ DELPHI CRD3.XX TC1797+25LC256 Reset Virgin BENCH P004
BENZ DELPHI CRD3E.1 TC1793+25LC256 Reset Virgin BENCH P004
BENZ DELPHI CRD3P.B0 TC1793+25LC256 Reset Virgin BENCH P004
BENZ DELPHI CRD3P.C0 TC1793+25LC256 Reset Virgin BENCH P004
BENZ DELPHI CRD3P.D1 TC1793+25LC256       Reset Virgin BENCH P004
BENZ DELPHI CRD3P.G0 TC1793+25LC256 Reset Virgin BENCH P004
BENZ DELPHI CRD3X.X TC1793+25LC256 Reset Virgin BENCH P004
BENZ SIEMENS/CONTINENTAL SIM271DE TC1796+ST95128 Reset Virgin BENCH P004
BENZ SIEMENS/CONTINENTAL SIM271KE TC1796 Reset Virgin BENCH P004
BENZ SIEMENS/VDO MSM AM29F200BB OBD/BENCH P004
