Diagnose Audi/VW Simos 6.3/ Simos 18.3 ECU with Autel MK808Z-BT and Godiag GT100+
How to use Autel MK808Z-BT to diagnose Audi/VW Simos 6.3/ Simos 18.3 ECU with Godiag GT100+ OBDII Breakout Box on bench?
It’s easy and safe to operate. Check the detailed guide below.
- Autel MK808Z-BT with Godiag GT100+ Diagnose Audi Simos 6.3:
1.Device connection
Remove the MaxiVCI Mini from the back of Autel MK808Z-BT diagnostic scanner
- Connect Godiag GT100+ ECU Connector and Autel MK808Z-BT VCI by the Godiag OBD 2-in-1 Extension Cable
- Connect Godiag GT100+ and Audi Simos 6.3 ECU via the Godiag Colored Jumper Cable according to the corresponding wiring diagram
- Connect Godiag Power Supply 12V to GT100+
The indicator lights on the device will turn on automatically.
2.Diagnose Audi Simos 6.3 ECU with Autel MaxiCOM MK808Z BT
Select Diagnostics>> Accept the disclaimer>> Audi>> Control units>> Diagnosis>> Control unit>> 01-Engine Control Module 1
Function supported:
Read ECU information- OK
Read trouble codes- OK

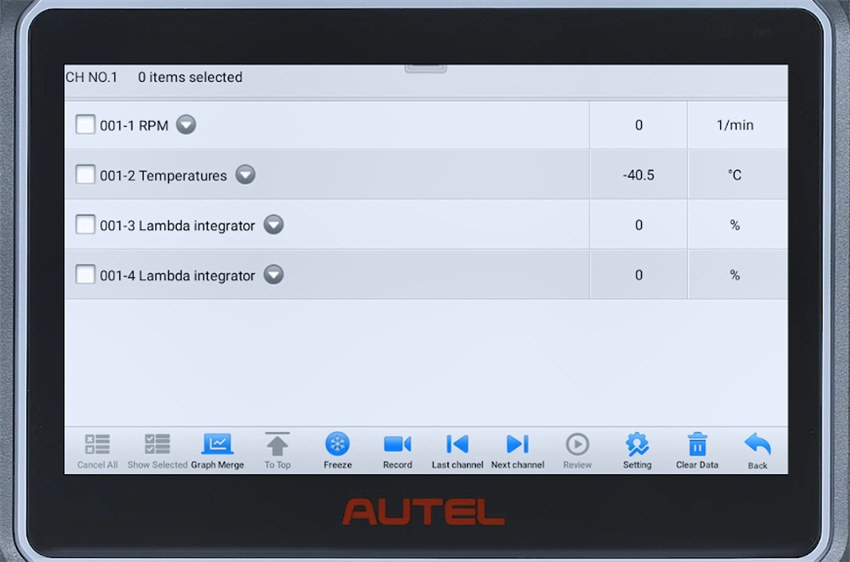

View live data- OK
- Autel MK808Z-BT with Godiag GT100+ Diagnose Magotan Simos 18.3 ECU:

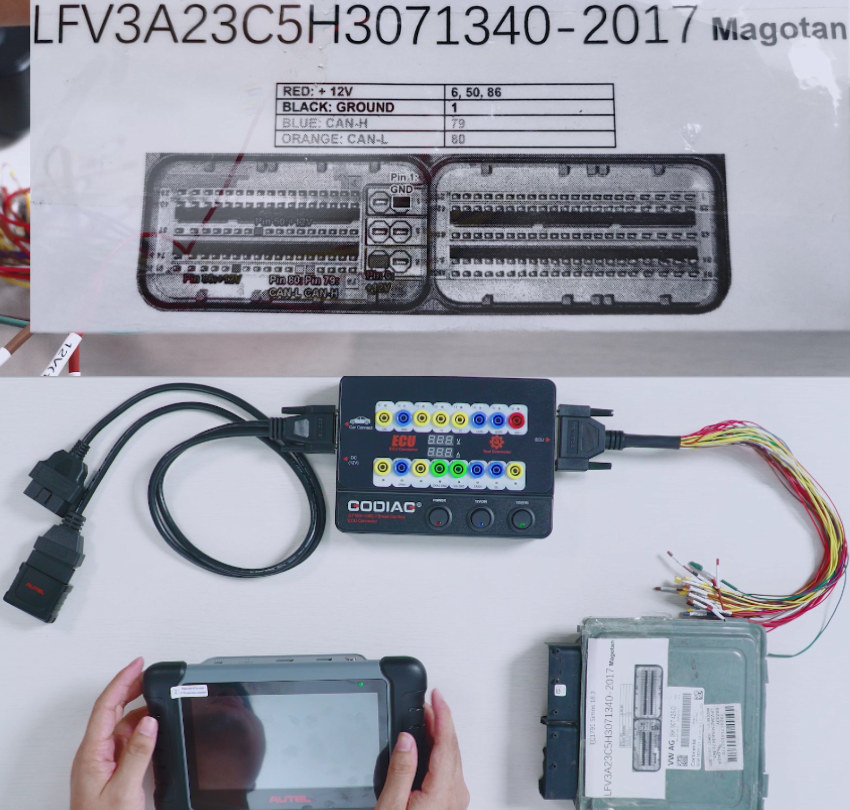

Connect Godiag GT100+ to Autel MK808Z-BT VCI and Simos 18.3 ECU correctly according to the corresponding wiring diagram, also supply 12V power to GT100+
Select Diagnostics>> EOBD>> Accept the disclaimer>> Autoscan

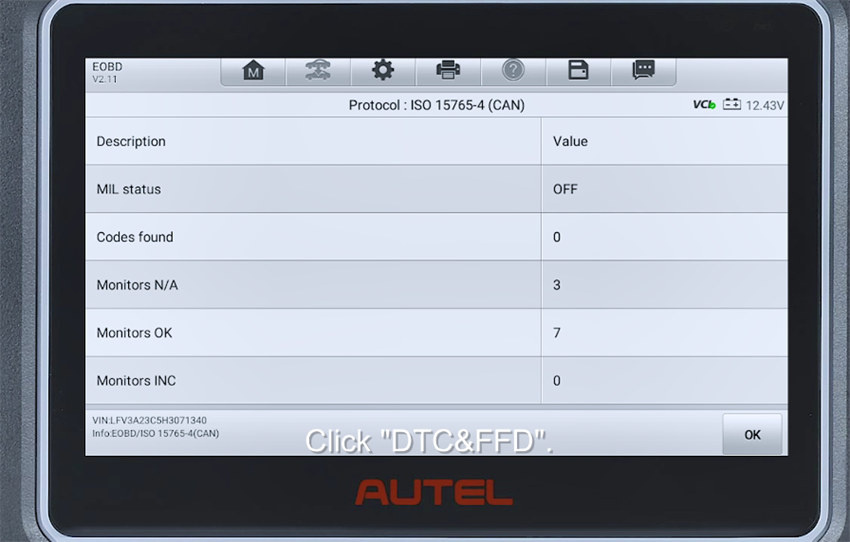

Identify the CAN protocol successfully
Function supported:
DTC& FFD, I/M readiness, Live data, On-board monitor, component test, Vehicle information, and Vehicle status
Read trouble codes- OK
View I/M readiness- OK
View Live data- OK
Check Vehicle information & Vehicle status- OK
