Foxflash Read DQ200 DQ250 TCU with Godiag GT107+ DSG Plus
Godiag GT107+ DSG Plus can work with foxflash ECU programmer to read DQ200 and DQ250 TCU data. It needs to set GODIAG GT107 + analog ignition switch in “manual” mode.
Godiag GT107+ DSG Plus and foxflash Read DQ200:
Accessories required:
- Godiag GT107+ DSG Plus Gearbox Data Adapter
- Godiag DB9 DSG Gearbox Universal Conversion Jumper
- Foxflash ECU Chip Tuning Tool
- OBD cable
- USB cable
- Laptop
- DQ200 TCU: i.e. AUDI GEAR A3 DSG DQ200
Connection:
Connect foxflash and computer via the USB cable
Connect foxflash and Godiag GT107+ with the main cable
Connect GT107+ to DQ200 TCU according to the pinout
Supply power to foxflash
Operation:
Enable network connection
Run foxflash manager and software
Login with the key (SN)

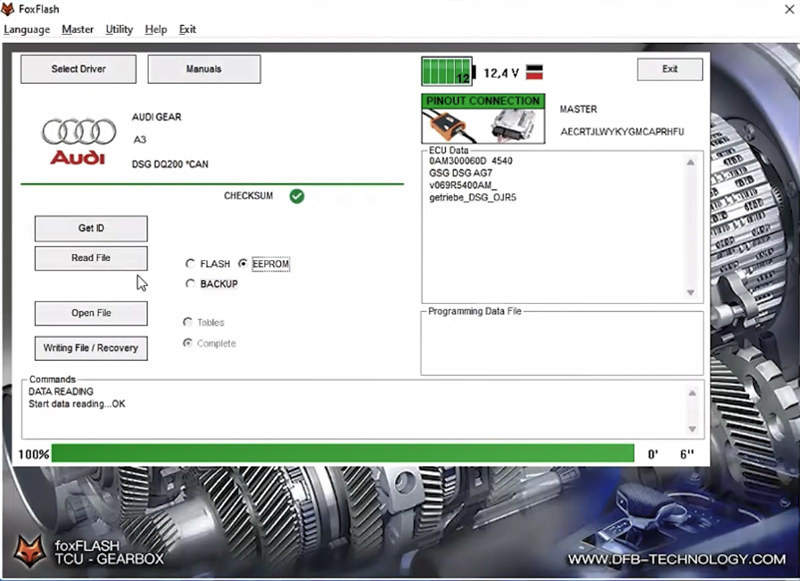

Select driver>> AUDI GEAR>> A3>> DSG DQ200*CAN>> OK
Click “Get ID”
Turn on the dashboard (ignition)
Read data successfully
Click “Read file”
Enable a new file to save the data
Turn off the dashboard (ignition)

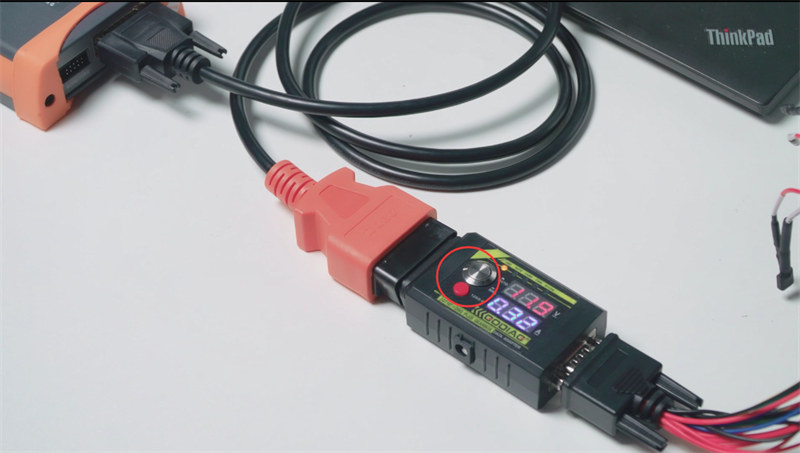

Then turn on (press the GT107+ switch button), and press 120 ohm CAN resistance switch
Read DQ200 TCU data successfully
Finally, turn off the dashboard.
Godiag GT107+ DSG Plus and foxflash Read DQ250:
The connection method and operation steps are the same as DQ200.
Connect foxflash, GT107+ adapter, DQ250 TCU and computer correctly
Then run foxflash software
Select driver>> AUDI GEAR>> A3 DSG DQ250*CAN>> OK
Get ID- OK
Read file- OK
