How to Read and Write Renault SID310 via OBD or Boot with FoxFlash?

Is it possible to use Foxflash ECU Programmer to read and write Renault sid310? via OBD, bench or boot?



Here is the answer.

OBD and Boot mode both are OK.



1.OBD Driver for Renault Master SID310 is available in foxflash software.

foxflash read write renault sid310 via obd and boot 1

2.Renault sid310 with foxflash by Tools Boot mode

Find password ok

Read ok

Write ok

foxflash read write renault sid310 via obd and boot 2 foxflash read write renault sid310 via obd and boot 3foxflash read write renault sid310 via obd and boot 4foxflash read write renault sid310 via obd and boot 5



Simple Boot mode instruction for sid310 with foxflash:

Step 1: Find Password

Step 2: Read and write ECU



Step 1: Find Password

Connect foxflash and the vehicle via OBD cable

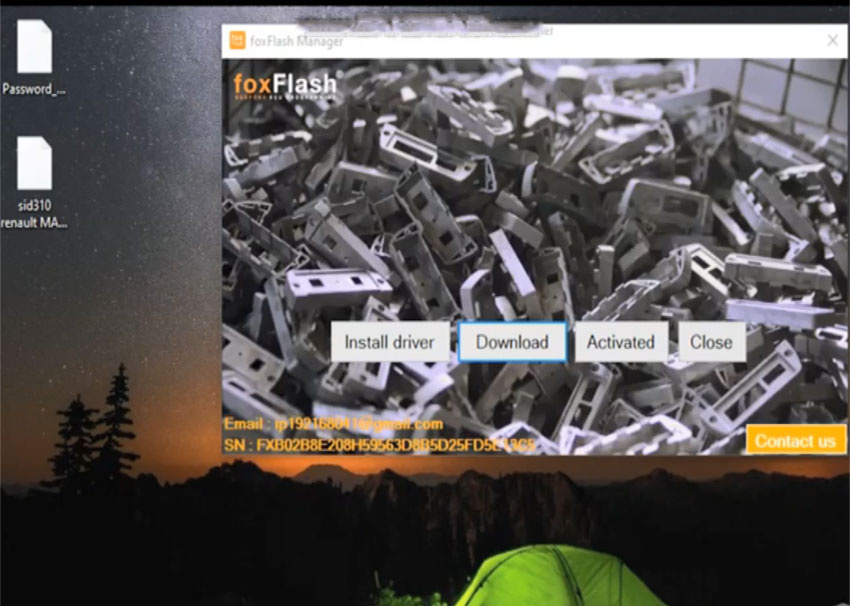

Run FoxFlash Manager and foxflash software

foxflash read write renault sid310 via obd and boot 6

Enter select driver interface

Select TOOLS BOOT MODE>> INFINEON TROCORE Tool Password>> OBD PASSWORD SID310 RENAULT- NISSAN- MERCEDES

foxflash read write renault sid310 via obd and boot 7

Click on “Find password” and follow the on- screen message to do.

For some models, the password can also be found on the desk by connecting the following pinout.

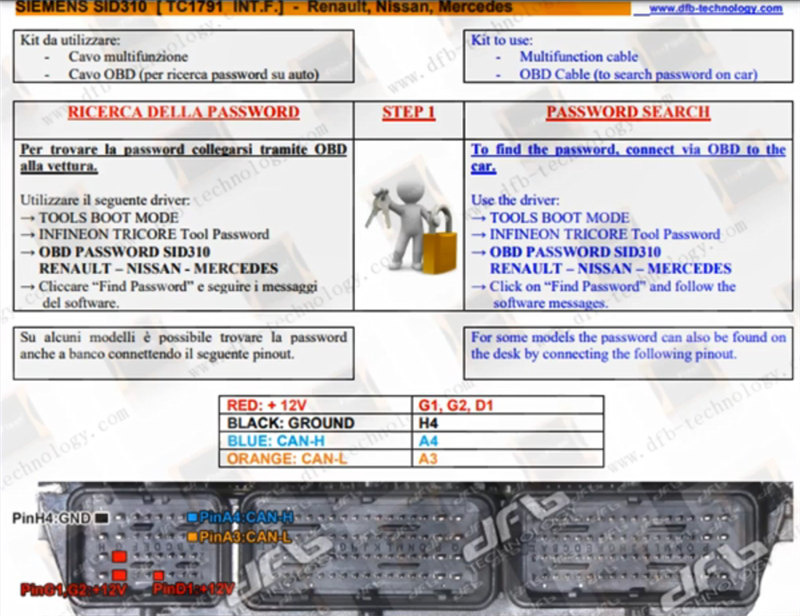

SIEMENS SID310 [TC1791 INT.F.] – Renault, Nissan, Mercedes PINOUT:

PIN G1, G2, D1 (Red): +12 V

PIN H4 (Black): Ground

PIN A4 (Blue): CAN-H

PIN A3 (Orange): CAN-L

foxflash read write renault sid310 via obd and boot 8



Step 2: Read and write ECU

After the password is found, then go to read and write ECU in sequence.

Follow the PINOUT to connect Foxflash ECU Chip Tuning Tool and ECU via the multifunction cable

PIN G1, G2 (Red): +12 V

PIN H4 (Black): Ground

PIN D1 (Green): IGNICTION

PIN A4 (Blue): CAN-H

PIN A3 (Orange): CAN-L

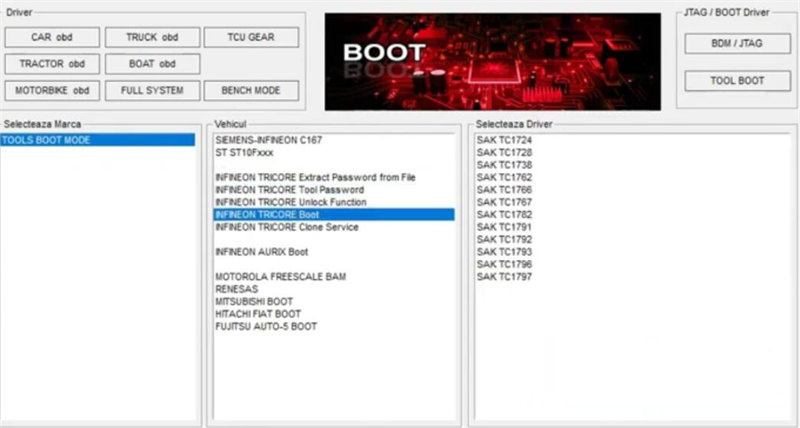

Then Select driver>> TOOLS BOOT MODE>> INFINEON TRICORE Boot>> SAK TC1791

foxflash read write renault sid310 via obd and boot 9 foxflash read write renault sid310 via obd and boot 10

Read Int Flash Micro and save the data

Then write Int Flash Micro



Besides, Godiag GT105 OBDII Breakout also can work with sid310 to read password on bench then boot mode to read and write.
