MPPS V18 China/EU Clone Review

Reviews of MPPS V18 china/eu clone ECU tuning tools…. Here you go…


MPPS V18 clone Ford:

Ford – SID206
Opel – EDC16C9/39,PSG16CAN
R/W OBD ok


Ford edc16c34 2.20 r/w ok
yesterday i have tested mpps v18 into myFord Focus 2 edc16c34.
read about 10 min and write 3-4 min


Focus, read 3 sectors about 10 min and write 4,20 min than wait 3 min.
after that 3 min i wait another 2 min, like software says.


MPPS is renown for Issues on the Focus 1.6tdci Edc16 ecu,

so much so i never ever tried, always same story mpps.
Always used Fgtech on these, and no issues,

i would BDM or use any tool other than MPPS whatever version


i come back with news about edc16c34 Ford

the news is this is a good tool.

mpps did not corrupt my eep, file that i was made it was bad, in my happines and stupidity i put into IQ maps, 65mg fuel without changing IQ limit, 60mg

i have write that file with galletto and same problem.

today i have write another file (good one) with mpps v18 and it was verry good.

ford edc16c34 2.20 r/w ok

i can’t wait to see if can do edc16c34 5.95




MPPS V18 VAG (audi, vw, skoda, seat):

Golf 1.6 TDI Siemens Simos Pcr2.1

R/W can (unlock boot mode-ok) – ok


easy A4 2.5L edc15v

obd mode

read and write
kess didnt want to read this tho ? might of been voltage l read at the guys place(fans on with read and write) and wrote at mine with charger but didnt try kess again


Golf TDI EDC17c14

Boot mode.
read / write all ok,


Skoda Fabia 1.9SDI EDC15V+ ….

generic eeprom OBD K-line R/W-OK
Flash OBD K-line R/W-OK


Skoda Octavia 2.0 Tdi edc16

all good


Vw Caravelle 1998 msa 15.5

same I’d okay but not read


ECU EDC17 on Audi a6 2009

this tool read via boot


Polo SIMOS 3PE 1.2 12v

read/write as generic simens SIM4LE boot mode flash 512kB – OK  (catalyst off).




Chinese MPPS V18 Opel:

Opel – EDC16C9/39PSG16 via CAN OBD read and write ok


Opel Corsa marelli 1.3cdti OK

(Be sure to run as administrator using windows 7)


Opel Astra H 1.7CDTI 125PS (98002895 Z17DTR DENSO)

Read and write via OBD (CAN) OK


MJD 6JF Fiat/Opel micro+ eeprom

R/W OBD – K line (MPC555+95320) OK


Opel Signum PSG16 2.2CDTI

read as a Zafira by OBD all OK


Opel Astra 2.0 16V CDTI BOSCH PSG16It

auto checksum and read/write OK


Opel 602/3 full read/write Micro, Flash, EEPROM, via k-line & CAN ok

Opel 603 full R/W Micro, Flash, EEPROM, via k-line & CAN ok

Opel 6JO full read/write Micro & EEPROM, OK via k-line (CAN)




(updating) MPPS V18 reviews:

eeprom available

full boot

read normally, Not so OBD, just flash


Jaguar X type, 2.7TD V6
option is can only sid 204
ID Ecu ok and lists DTC etc.


China clone: EDC17C10 PSA

boot mode

Read OK 3:30min – faster than Ktag, Kess and FGtech.


read and write edc16u34 on bench after immo off,

read and write is fast about 10 minutes 2mb ,

tried kess using mpps tricore lead and read and write 40 minutes for 1mb


suzuki vitara hdi edc15c2

R/W ok dtc deleted automaticly before read.


mitsubishi pajero 3.2l

did denso 4m41 R/W ok (chinese)


OPEL Signum PSG16
2.2CDTI readout as a Zafira.
all OK.Through OBD.


Corsa 1.3cdti marelli mjd6

reads writes ok, (OBD)

Did a data area only not full read,
But lost inj coding on writing MOD.


PSG16 only can.

If k-line (zafira A) R/W konekt pump can.


China clone:Magneti marelli 6F0

full read/write by OBD MPC,Flash EEPROM OK!


Astra H Denso Z17DTJ

R/W CAN – ok
SEAT ME7.5.10

R/W k-line (cat_off) – ok


tested today on psa 207 edc16c34

Can R/W ok and ducato edc16c39 RW ok


Opel Astra H 1.7CDTI 125PS (98002895 Z17DTR DENSO)

– R/W OBD(CAN)- ok.


MJD 6JF Fiat/Opel micro+eeprom

R/W ok.


Citroen relay/jumper 2

read id but won’t read


mine came, read and write td5 Landrover,

tricore read and write edc17c10 and unlock pcr2.1


Corsa D 1.3 CDTI, EDC17C18, 70.0kw,2010, Z13DTE

R/W bootmode TriCore™ = OK


BMW e91 330xd edc16c35

R-W OK with mpps China clone


Astra vxr me7.6.2

R/W OK ( do that ecu own risk ! )


Fiat Doblo 1.3 mjet mjd6f3 obd – r/w ok
Range Rover edc17cp11 boot – r/w ok
this tool looks great


PSG16 ok can obd,

if k-line obd only pump pin can R/W.


Lacetti (2008y) 2.0 CDRi EDC16C39

R/W CAN (only map 2Mb) as Captiva = OK


Mazda 3 1,6 TD
2009 car, edc16c34
– LIKE focus
Read . write OBD fine,
reads 3 times or 3 areas so bar goes 100% then start again weird, never before seen like this, same on write 2 times i think bar goes accross,
then 99% wait 4 mins or so, was begining to think BAD NEWs, then all ok,
car perfect file on ecu,


unlock siemens simos pcr 1.6 tdi

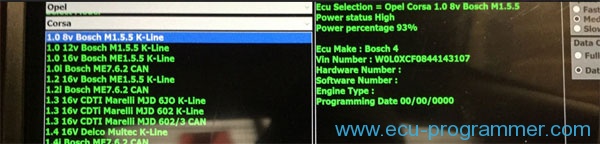

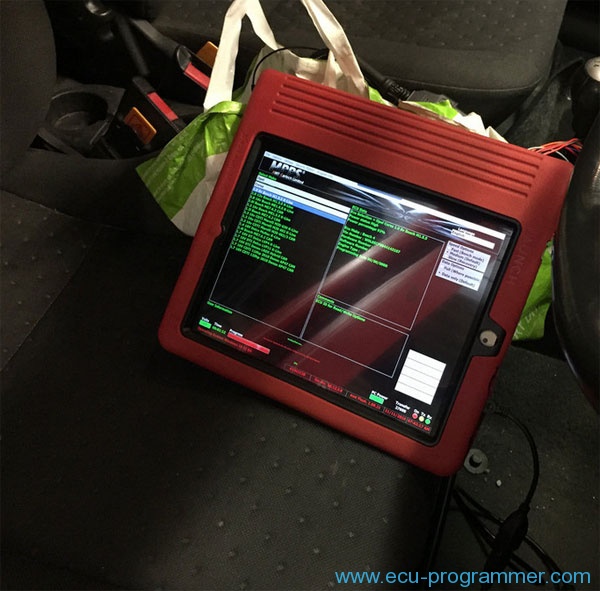

tested on a cosra z10xep bosch med1.1.5

r/w , write in slow only ,

kess eu was the same only write slow speed too
delete dtc

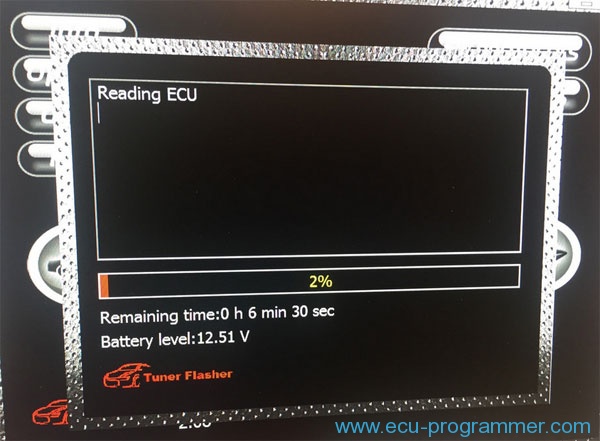

just tried thetricore cable on my kess and worked fine edc15 [will bring home my spare pcr2.1 and try that with obd].. worth the money just for the obd on desk use
be nice to unlock and write on the desk
