OBDSTAR DC706 ECU Tool User Guide:Function+ Vehicle Coverage+ Operation

OBDSTAR DC706 is a new ECU programmer specially designed for vehicle ECM, TCM and body/other system for ECU flasher. It can read ECU info, R/W EEPROM/DFLASH/PFLASH/MAP, reset ECU (Virgin), calibrate mileage, read IMMO pincode, and do ECU recovery… It’s all by OBD or bench mode and makes ECU cloning easy.

obdstar dc706 user manual 1



In order to meet the needs of different customers, OBDSTAR has developed 7 configurations optional for customers’ choice.

  1. ECM clone (Car/Motorcycle)
  2. TCM clone
  3. Body/Other clone
  4. ECM clone (Car/Motorcycle) + TCM clone
  5. ECM clone (Car/Motorcycle) + Body/Other clone
  6. TCM clone + Body/Other clone
  7. ECM clone (Car/Motorcycle) + TCM clone + Body/Other clone

obdstar dc706 user manual 2



What’s inside the OBDSTAR DC706 Package?

1pc x DC706 Main Unit

1pc x Main cable

1pc x P004 adapter

1pc x P004 ECU clone jumper

1pc x 12V2A charger

1pc x P003 kit (optional)

obdstar dc706 user manual 3



What’s the advanced function of OBDSTAR DC706?

  1. R/W EEPROM/DFLASH/PFLASH/MAP, reset ECU (Virgin), calibrate mileage, read IMMO pincode, and do ECU recovery…
  2. Support 200+ ECM types (Partial functions require P003 adapter.)
  3. Support dozens of TCM types
  4. Support 100+ body/other ECU types (AIRBAG, BCM, BSI, CEM, DDM/PDM, DIM, EPS, keyless (RFHUB/RFHM), KVM, RFA, SAM…)
  5. Support VW DQXXX (TCM) calibrate mileage
  6. Support motorcycle Delphi MT05, MT05.2, MT05.3 ECU clone
  7. Support motorcycle BRP ME17.8.5 ECU clone (works with P003 adapter)
  8. Support Piaggio series engine ECU clone (such as MIU G4 (M4G1))
  9. Support intelligent search by brand, model, part No., ECU manufacturer, MCU controller type
  10. Support automatic identification
  11. Strong help data files
  12. All by OBD or Bench mode



Which ECU manufactures are supported by OBDSTAR DC706?

ALPS

Autoliv

Bosch

Continental

Delphi

Denso

Johnson Controls

Lear

Magneti Marelli

Siemens

Temic

Valeo



Which car and motorcycle can work with OBDSTAR DC706?

  • Supported car brands:

ASTON MARTIN

BMW

FAW

FCA (ALFA ROMEO, CHRYSLER, DODGE, FIAT…)

FORD/LINCOLN

GM/OPEL

HYUNDAI/KIA

LAND ROVER/JAGUAR

LUXGEN

MASERATI

MAZDA

MITSUBISHI

NISSAN

OPEL

PSA

SMART

SUBARU

SUZUKI

VOLVO

VW/AUDI/SEAT/SKODA



  • Supported Motorcycle brands:

APRILIA

BRP

CFMOTO

DERBI

GILERA

GUZZI

PEUGEOT

PIAGGIO

QJBENELLI

VESPA



Which ECU/car/motorcycle can work with OBDSTAR DC706 to clone ECM/TCM/Body/Other?

ECU Clone/ All by OBD or Bench

ECM clone for cars (Bosch, Continental, Delphi, Denso, Magneti Marelli, Siemens…)

ECM clone for motorcycles (Bosch, Delphi, EFI…)

TCM clone (Ac Delco, Bosch, Continental, Getrag, GM, Kefico, Siemens, Temic, ZF…)

Body/Other clone (FCA, FIAT, FORD, GM/OPEL, LAND ROVER/JAGUAR, PSA, SMART, VOLVO…)



OBDSTAR DC706 Car List:

OBDSTAR DC706 ECM Coverage

OBDSTAR DC706 TCM Coverage

OBDSTAR DC706 Body/Other Coverage



How to use OBDSTAR DC706?

OBDSTAR DC706 tablet has 6 main functions in the menu function:

ECU Flasher, Data Management, Support, Personal Center, Settings and Upgrade

obdstar dc706 user manual 4

ECU Flasher interface

Select BODY/OTHER/ECM car/ECM Motorcycle/TCM

obdstar dc706 user manual 5

ECM Clone for Cars interface

  • Select the corresponding car brand and model

Click ‘Guide’ to check the detailed operation steps and ECU wiring diagram

obdstar dc706 user manual 6

obdstar dc706 user manual 7

Click ‘Pinout’ and then select standard mode or recovery mode to check the PINOUT

obdstar dc706 user manual 8

obdstar dc706 user manual 9

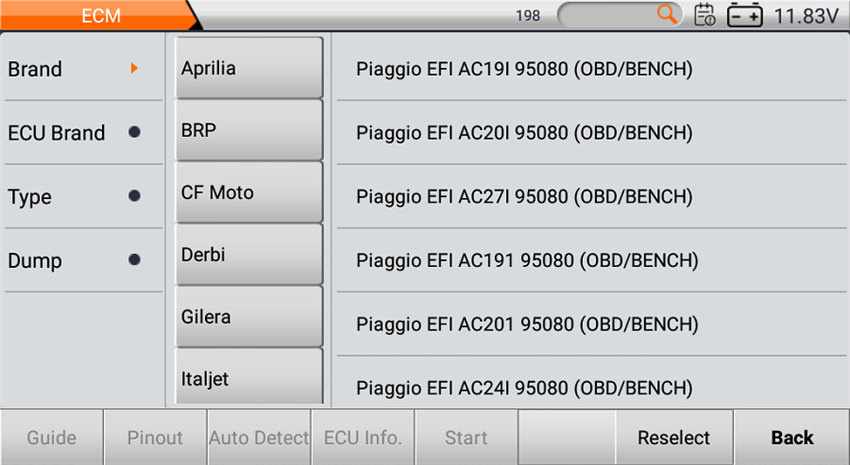

ECM Clone for Motorcycles interface

obdstar dc706 user manual 10



Operation guide:

1.All goods prepared:

  • OBDSTAR DC706 main unit
  • Main cable
  • OBDSTAR P004 adapter+ P004 Jumper
  • ECU

obdstar dc706 user manual 11

2.Menu function path:

Turn on OBDSTAR DC706 ECU Programmer tablet

Select ECU Flasher>> All>> Body/Other/ECM/TCM>> the newest software version>> related car model

Follow the wiring diagram to connect OBDSTAR DC706 and ECU correctly

  • Connect P004 jumper with ECU
  • Connect the other end of P004 jumper to P004 adapter
  • Connect the other end of P004 adapter to DC706 main unit via the main cable
  • Turn on the start button on P004 adapter and push to ON status

obdstar dc706 user manual 12

obdstar dc706 user manual 13

Click ‘Start’ on the tablet interface

To perform this function needs internet, please make sure the tablet connect to network with good signal.

Start to perform the function you need.

First connect, and then select any function supported to operate.

obdstar dc706 user manual 14

It’s very easy to do with the guide.



Here are some videos for watching.

OBDSTAR DC706 Clone FCA RFHUB/RFHM Keyless Module on Bench:



OBDSTAR DC706 Clone GM ACDelco E39A ECM on BENCH:



OBDSTAR DC706 Clone VOLVO MPS6 TCM on BENCH:
