How to Read/Write Renault Siemens SIRIUS 32 with OBDSTAR DC706 on Bench

Question:

Is it possible to read and write Renault Siemens SIRIUS 32 ECM with OBDSTAR DC706? via OBD or bench?



Here is the answer.

Yes. DC706 ECU Tool can read and write some Renault ECMs via OBD/Bench/Boot. Not one model supports all three operations. Only CONTINENTAL EMS3110 supports Boot mode. SIEMENS EMS3132, SIRIUS 31H, SIRIUS 32N, and SIRIUS 32 support both OBD and Bench modes. Others are by Bench. Besides, ME17.9.23 can modify VIN and Reset (Virgin), and some ECMs also can do IMMO OFF.

Check the detailed OBDSATR DC706 Renault ECM Support List below.

ECM version: V30.48

Brand ECU brand Type Dump R&W INT flash R& W INT EEPROM R&W EXT flash R&W

EXT EEPROM

Other COMM. MODE
RENAULT BOSCH EDC16C41 MPC561(2) BENCH
RENAULT BOSCH EDC17C42 TC1767 BENCH
RENAULT BOSCH ME17.9.23 TC1724N Modify VIN
Reset (Virgin)
BENCH
RENAULT CONTINENTAL EMS3110 TC1766 BOOT
RENAULT SIEMENS EMS3132 AM29F200BB IMMO OFF OBD/BENCH
RENAULT SIEMENS EMS3134 AM29F400BB IMMO OFF BENCH
RENAULT SIEMENS SIRIUS 31H AM29F200BB IMMO OFF OBD/BENCH
RENAULT SIEMENS SIRIUS 32 AM29F200BB     IMMO OFF OBD/BENCH
RENAULT SIEMENS SIRIUS 32N AM29F200BB IMMO OFF OBD/BENCH
RENAULT SIEMENS SIRIUS 34 AM29F400BB IMMO OFF BENCH
RENAULT SIEMENS/CONTINENTAL SIM32 64F7055+95160 BENCH

For example, read and write SIRIUS 32 ECM with OBDSTAR DC706 on bench.

To perform the clone function, OBDSTAR P004 ECU Clone Jumper and Adapter, main cable (OBD cable), and 12V2A charger are required to work with DC706.

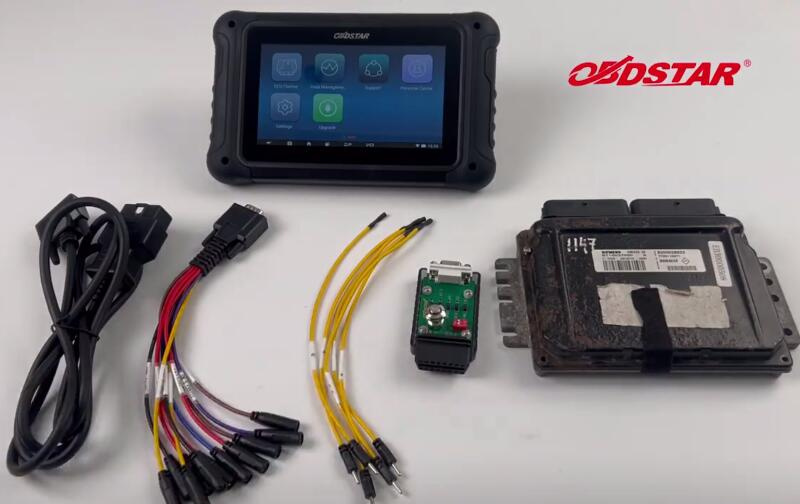

obdstar dc706 clone renault sirius 32 1

Connect the 12V power supply to DC706 and keep charging and communicating throughout the whole progress, and make sure the network connection is stable as well.

Select ECU Flasher>> ECM>> ECM V30.48 (choose the newest software version)>> BRAND>> Renault>> Renault Siemens SIRIUS 32 AM29F200BB (OBD/Bench)

obdstar dc706 clone renault sirius 32 2

Check the Pinout Diagram:

A-Pin 29, 30= Red 12V (16)

A-Pin 28= Black GND (4+5)

A-Pin 56= Blue K LINE (7)

A-Pin 26= Purple GMS CAN (1)

obdstar dc706 clone renault sirius 32 3

Connect OBDSTAR DC706 ECU Tool and SIRIUS 32 ECM correctly

obdstar dc706 clone renault sirius 32 4

Turn on the power of OBDSTAR P004 Adapter and click “Start” to select “Bench” mode

obdstar dc706 clone renault sirius 32 5

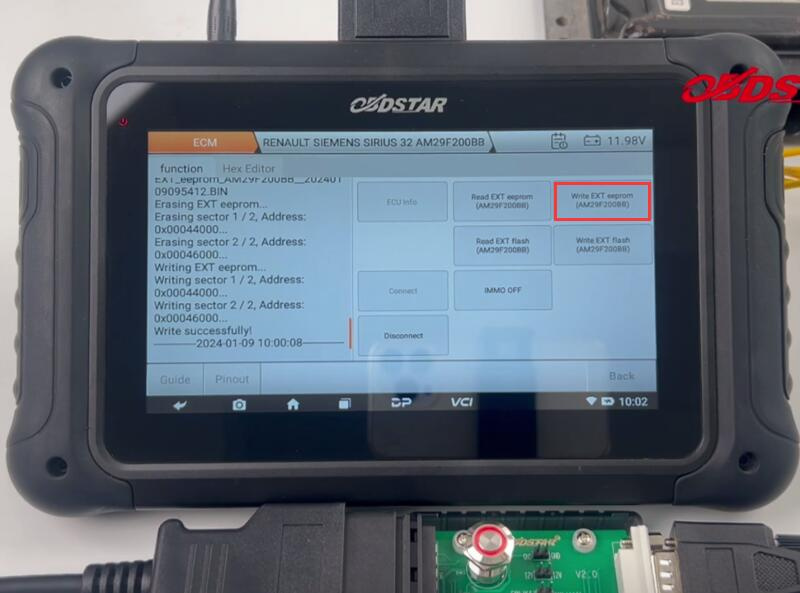

Follow the on-screen prompts to read and write EXT Flash and EEPROM (AM29F200BB) data separately

obdstar dc706 clone renault sirius 32 6 obdstar dc706 clone renault sirius 32 7 obdstar dc706 clone renault sirius 32 8 obdstar dc706 clone renault sirius 32 9 obdstar dc706 clone renault sirius 32 10 obdstar dc706 clone renault sirius 32 11

Done!
