How to use KT200 Offline Workstation No Need Internet

Auto ECU Programmer

KT200 Offline Workstation USB Dongle has been released at eobdtool.co.uk. It’s friendly for the outdoor ECU tuning where the internet is not accessible or the signal is too weak to connect, and can read & write ECU /TCU via OBD/Bench/Boot/BDM/JTAG as perfectly as KT200 online version.

kt200 read write ecu with offline workstation 1



Some people worry about the online server goes ways. Actually, KT200 has backup servers to ensure its tool is always operational for users. KT200 Offline Workstation also can avoid this problem.



How to get a KT200 Offline Workstation?

KT200 offline workstation has officially completed testing. It is only available for the KT200 Full Version.

KT200 Auto version users can’t use offline workstations, must update auto version to full version.

(If you update the Auto version to Full version, the offline workstation will be $50 only).



In order to thank all customers’ support, if you purchase the full configuration version from us, you can get a set of offline workstation equipment for free (device is free, and you only need to pay for $50 shipping charge)



Users who purchase from other channels are not eligible for this activity.

The campaign lasts until 2022.12.30.



Kindly notice:

Even with the USB dongle, your KT200 still need to connect to the KT200 online server once every 15 days.



Current KT200 offline version: 22.11.20

kt200 read write ecu with offline workstation 2



How to use KT200 Offline Workstation?

It comes with two USB disks (black and white).

  • The black is the U disk which contains offline software and installation instructions. It must be installed online before it can work offline.
  • The white is the dongle that is used to activate license.

First plug the black USB  into the computer, no need to connect to the internet

kt200 read write ecu with offline workstation 3

Then run the setup to install KT200 offline software V22.11.20

kt200 read write ecu with offline workstation 4

When it asks you to update firmware, just skip it by clicking the close button.

kt200 read write ecu with offline workstation 5

After installing KT200 Software, make sure the C drive has a capacity of 15G or more so that you have enough space to run the installation of KT200_ftp.

kt200 read write ecu with offline workstation 6

After the software installation is completed, insert the white USB dongle and run the KT200.exe program to complete the first update activation

kt200 read write ecu with offline workstation 7

Press Yes to update license

kt200 read write ecu with offline workstation 8

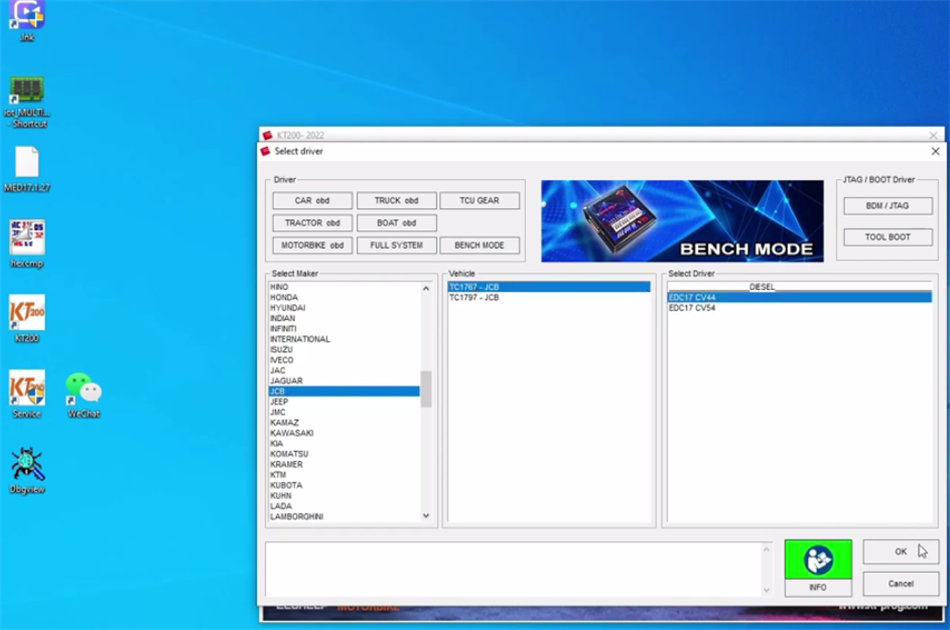

Complete the activation and run software to read/write ECU

kt200 read write ecu with offline workstation 9

kt200 read write ecu with offline workstation 10

Note:

After KT200 offline software is installed, there will be two programs appearing on the desktop. One is KT200 software, another is Service.

When to run the Service application?

  • The server connection is unstable- Switch to another server
  • The software menu turns gray and cannot select-  reset device
  • The software cannot use normally- download the software
