Kess3 Clone EDC16U1 VW Golf 1 9TDI Engine ECU Guide

How to clone EDC16U1 VW Golf 1 9TDI Engine ECU with ALIENTECH Kess3?

kess v3 clone vw edc16u1 ecu 1

There is the related connection diagram and operation guide in the Kess3 software, which makes you clone the ECU easier.



Instruction:

1.Remove the ECU from the vehicle

2.Open the ECU being careful not to damage the parts inside

3.Reconnect the ECU to the vehicle and start the engine. In order to make sure the ECU is still in working order and has not been damaged in the opening

4.Remove again the ECU from the vehicle

5.Connect to the ECU

6.Select Identify ECU in the programming menu to allow correct recognition of the ECU

7.Always make a full backup of the ECU

8.Proceed with reading/writing



Direct Connection:

1.Solder the pin headers to the programming pads. Make sure not to make short-circuit between the pads.

Note: The first four pads on the right are not used.

2.Set the ribbon cable 144300T100 on the pin headers

3.Connect the ribbon cable 144300T100 to the KESS3 ECU Programmer

4.Plug in the bench power supply 1400K3ALIM to the Kess V3

5.Remove the soldered pin headers before reinstalling the ECU to the vehicle



Connection with positioning frame:

1.Set the ALIENTECH Kess V3 on the Plexiglas® deck of the positioning frame 14P800DIMA;

2.Plug in the bench power supply 1400K3ALIM to the KESS3:

3.Set the ECU on the positioning frame 14P800DIMA;

4.Connect the ribbon cable 144300T100 to the adapter 14AM00T01M and the KESS3;

5.Set the adapter 14AM00T01M into the compartment of the frame and lower the adapter on the ECU, start from Pin 1 shown in the picture:

kess v3 clone vw edc16u1 ecu 2



After connected, run ALIENTECH suite software to operate

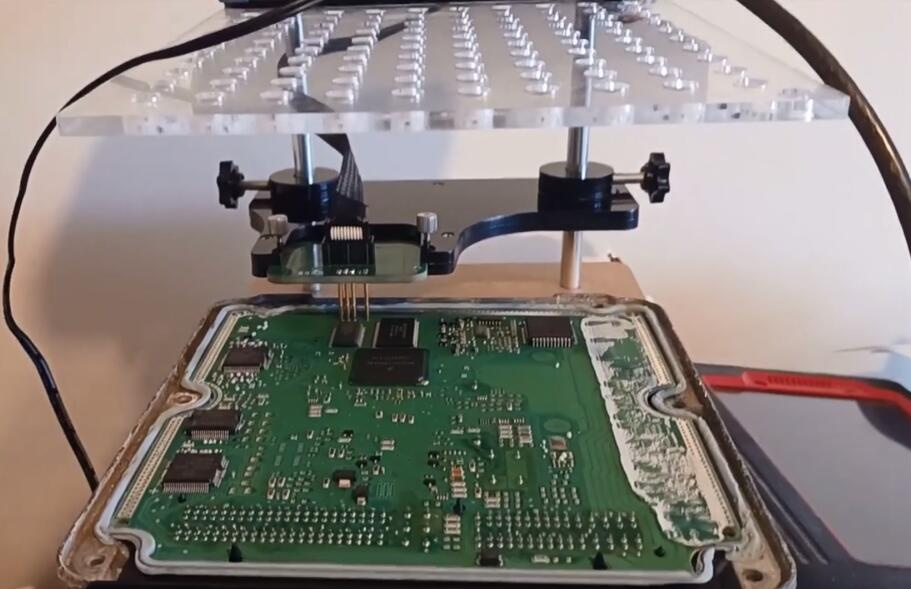

kess v3 clone vw edc16u1 ecu 3

Step 1: Obtain ECU model

Input EDC16U1 in the searching box to find the corresponding ECU model quickly

Such as Golf (5th) 1K1 (2003) 1.9 TDI 4Motion 5MT 77 Bosch EDC16U1

kess v3 clone vw edc16u1 ecu 4

Go to next page

Step 2: Select connection method

Select the connection method and continue

kess v3 clone vw edc16u1 ecu 5

Step 3: Backup the original ECU data

Identify ECU, read backup data

kess v3 clone vw edc16u1 ecu 6 kess v3 clone vw edc16u1 ecu 7

Clone ECU and read the ECU, save the new data

kess v3 clone vw edc16u1 ecu 8 kess v3 clone vw edc16u1 ecu 9

Step 4: Backup the new ECU data

Unplug the original ECU and plug a new ECU

kess v3 clone vw edc16u1 ecu 10

Identify ECU, read backup data

kess v3 clone vw edc16u1 ecu 11

Clone ECU and upload the original ECU data to write into the new EDC16U1 VW ECU

kess v3 clone vw edc16u1 ecu 12 kess v3 clone vw edc16u1 ecu 13

Done!



Related Kess V3 FAQs:

Q: Kess 3 looks so expensive, is it worth the money?

A: Originals are always the best though expensive. However, it makes the work easier. Clones risks of ECU damage are very high.



Q: Can it be done with slave kess3?

A: Yes, it can be done with kess3 Master version or slave version.



Q: Do you need to renew /virgin the replacement ECU before cloning it with Kess V3?

A: For cloning service you don’t need virgin ECU.



Q: Why did you do back up read on the second ECU?

A: All the time we make a full backup from replacement ECU because sometimes customer change mind and we must be able to restore original data.
