KT200 read and write the test results of some models ECU

KT200/KTM200 can read and write much ECU under Win7/ Win10 32 bit/ 64bit (Driver signature enforcement disabled). The System needs a good internet connection to function correctly. Here have collected a lot of customer feedback about KT200 success and failure test report.



Customer’s positive review:

There’s no reason of hispeed internet (only firewall off). The tool only uses server as authentication method. It’s a protection feature! So no other Chinese factories produce low-cost clones! (clones of the clone)

kt200 if they want, they will be able to mod hw to make it run without server check!

Still i see no reason doing this, as now internet its available everywhere. Instead adding vr files to the server and an automatic download will be nice. If they keep this tool alive and continue to fix software and hardware bugs, it has a bright future. (maybe even adding new protocols developed by the KT200 engineers)



KT200 ECU programmer test- success:

Audi:

Audi A5 EDC17CP20 DPF EGR FLAPS TVA off VR read by OBD good tool

kt200 read write ecu feedback 1

kt200 read write ecu feedback 2

kt200 read write ecu feedback 3



AUDI ME9.1.1 read / write successfully (Driver: VAG MPC564/3)

Audi EDC17c46 R/W bench ok

Audi Pcr2.1 R/W in bench ok *unlocked



BMW:

Bmw 330d 2009 edc17cp09 Bench read and write ok

BMW E60 Active Dynamic Drive Steering MODULE READ/ WRITE ok

BMW SZL Unit (Driver: BDM MPC55X)

BMW EDC17CP02 R/W..ok

BMW EDC17C50 R/W..ok

BMW EDC16 CP35 bench read/write ok



Chevrolet:

ECU E83 Chevrolet DELCO read flash ok



Citroen:

Citroen Jumpy DCM3.5 OBD read- write ok!

Citroen Jumper BlueHdi DCM6.2C read/write OBD ok



Fiat:

Fiat 1.6d mjet edc16c39 read/write obd Fast!

kt200 read write ecu feedback 4



Ford:

Ford transit sid208 OBD read + write ok

Ford focus 1.6tdci sid 807 can read/write ok

Sid209 ford ranger 4mb flash also obd read write perfect!

Ford Transit 2.0 2019 Sid211 Obd read and write ok



Ford transit SID211 Full flash read/Write via OBD

only full flash possible OBD, E+F needs bdm



Edc17c74 gave me a hard time to read successfully the problem turned out that I have a sh****y internet connection tried with hotspot worked perfectly!!!

Guys beware of your internet connection



Isuzu:

Isuzu transtron M4.3 Ecu read ok

1 Hour read time

NPS81 4X4

Driver: Truck OBD – isuzu – P75 transtron CAN



Isuzu Dmax Vcross RT75 2015 – ECU read

Transtron L4.3

. Really need 1 hour to read

. Need to charge both car battery & laptop battery for this read out



Isuzu transtron ecu read & write ok via OBD

No need use easy hook again for this type ecu

Test unit is 4JJ1 fitted in Isuzu Dmax



Delphi DMCI full read flash ok



Jaguar:

Sid 201 Jaguar 2.7 OBD read OK



KIA:

KIA SIM2K-341 TCU TC1738 READ OK



Land Rover:

Edc17c11 range rover – bench read write OK

LAND ROVER MED17.9 ODB READ AND WRITE



Mazda:

Mazda Denso (skayactiv-d) read/write ok



Mercedes- Benz:

CRD3plus W205 bench mode OK

kt200 read write ecu feedback 5

R/w Mercedes edc16cp36 w221

kt200 read write ecu feedback 6

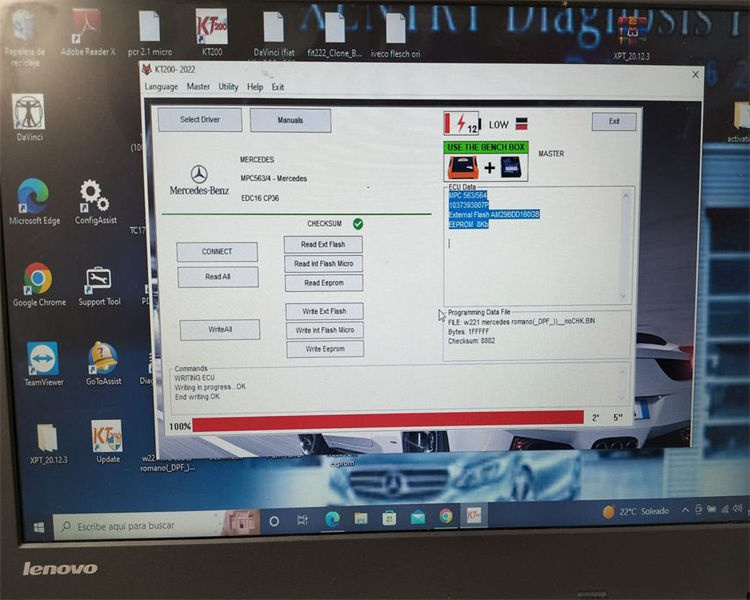

kt200 read write ecu feedback 7



W204 7g gearbox by pins read/write coding OK

Mercedes CrD3 E1 read e write bench perfect

Mercedes med 17.7.2 read full Ok, write flash Ok

Mercedes ML CDI ED16CP31 full read/Write Bench ok

Mercedes CRD3.10 read/write with KT200 OK
Mercedes W205

Med17.7.3.1 bench no problem

Crd3.7A om651 2016 mb ad blue of read and write bench successfully

SIM4LE R/W boot OK



Mitsubishi:

Mitsubishi Triton L200 change flash file

Read /write ok

Driver: full system – mitsubishi HW2-SH7058



Cloning Gearbox Smart G2T60. Top!!!

New software version with Windows 10 x64



Nissan:

Nissan Navara 2.5 Denso cloning without opening work like charm



Opel:

Opel Corsa C Y17DT egr off read write via OBD.5mnt read 5 mnt write

kt200 read write ecu feedback 8



Opel Delco E98 egr off read/write ok



Peugeot:

Peugeot 307 Sid 801A cloning without opening flash and eeprom work fine

kt200 read write ecu feedback 9



Dcm 6.2A peugeot 2.0 HDI. OBD read/write OK

EDC16C34 Peugeot R/W bench mode Ok, CK:OK



PSA:

Edc16C34 PSA read write full backup cloning without opening like charm i love this tool

kt200 read write ecu feedback 10

PSA ME7.4.5 (BOOT) R/W..ok

PSA MEV17.4 R/W..ok

PSA VISTEON DCU102 (BOOT) R/W..ok

PSA Sid208 password on bench okay

R/W in boot okay

PSA Group ECU: DCM6.2A via OBD ok



Renault:

Renault Edc16c36 read/write

Edc15c2 Renault read flash eeprom cloning without opening

kt200 read write ecu feedback 11

Renault 420 dCi ecu bosch MS6.3 read /write OK

Renault Premium truck 420 dCi common rail engine

Driver: Truck OBD – Renault MS6.3



Renault Premium R/W Bosch MS6.3 on OBD plug no problem

Dacia Duster with MD1CS006..r/w 100%

Edc17c42 mb citan. Renault and nissan same ecu. Dpf off ok!

EDC 16C36 1.9 DCI Renault bench full read/write flash externe OK



RENAULT EMS3132 (BOOT) R/W..ok

Renault EDC17 C42 full write OK

Renault Premium 440 Dxi truck can read ID& read flash/eeprom – no problem

We do a testing – convert UD GH11 ecu to Renault Premium DXi – -ecu program change successfully also by KT200 write in



Seat:

Seat EDC17u01 R/W bench ok

Leon 1.9 pd edc16u34 obd and bench with checksum correction working 100%



Suzuki:

Suzuki MG1CS026

SUZUKI SPC58 MD1CS018,works perfectly



TOYOTA:

Toyota Vios NCP93 ecu read OK

Self modification to use programming stand—hassle free

Kt200 ribbon cable + NEC 76F 26 adapter

+diode + 1k resistor



Denso board reflash due wrong file writed in by other tool (force write) & bricked the ecu

After write back correct file, ECU back to life

Driver: Hino 896xxx SH7058 boot mode



Volvo:

It worked on trw 2.2 volvo

EDC16C31 Volvo

R&W Flash and Eeprom OK

Volvo edc16c34 fullmode “obd” read write checksun ok

Volvo me9 Bench works

Just read and write as ford.



Volvo Me7 on bench pinout canbus OK



VOLVO RENAULT UD TRW EMS 2.2

WRITE IN SUCCESSFULLY



VW:

Clone EDC16U34 VW

Simos 3 VW 1.2 essence OBD read OK



VW transporter T5 good R/W

DPF OFF ok

EGR OFF ok

STAGE1 ok

kt200 read write ecu feedback 12



VW pcr2.1 read full flash, not only calibration area like many others. Read/write in bench tested ok! It also gives u if it’s unlocked/locked for OBD flashing. MCU id display.



Amarok EDC17CP20 READ AND write OK, internet must be strong.



Volkswagen Pcr2.1 vr raid obd unlock

VW EDC17c64 R/W in bench ok

VAG PCR2.1 R/W/EEP Unlock ..ok

VAG EDC16U1 Eeprom R/W..ok

Write by obd also ok



Others:

These ECU’s are tested positive

Bench:

MCM 2.1

ACM 2.1

EDC17CV41

EDC17C49

MD1CE101

MD1CS069

Serial Way (OBD)

EDC17CP02

Phönix L14

EDC15P

SID211



EDC17C64 OBD OK

VIRTUAL READ + WRITE OBD



Test edc15c2 work very good on bench

Edc15c2 perfect

Sirius 32 perfect

EMS 3132 perfect

Edc16c34 perfect

Edc16u34 perfect

Edc17c64 perfect

Md1cs003 perfect

EDC17CP14 perfect (manual checks)

All what I can say so far it is good tool I’m in 100% success so far (hoping it lasts for ever)



Scania R440 EMS s6

Read and write ok

KT200 MASTER



PCR 2.1 read flash eeprom bench and unlocked perfect



SID206 BDM read (18 minutes)

EDC16 C34 read/Write ok

EDC7UC31 READ OK

This time no need painful case open



John deere phoenix L12 ecu read fash & eeprom successfully

fast reading….. Good

ECU repaired, on going bench test.

Driver: John Deere Phoenix L12 CAN



EDC7 C32 on MAN Truck

R/W without problem

kt200 read write ecu feedback 13

kt200 read write ecu feedback 14





KT200 read/ write ECU failure:

W204 7g gearbox no possible to clone unit…

Vag edc17cp14 OBD fail on read
