How to Read and Write Mercedes Sprinter EDC15C6 with Foxflash via OBD?

Auto ECU Programmer, foxFlash

Foxflash ECU programmer feedback:

Read and write Mercedes Sprinter CDI E3 EDC15C6 via OBD successfully

foxflash read and write mercedes sprinter edc15c6 1 foxflash read and write mercedes sprinter edc15c6 2

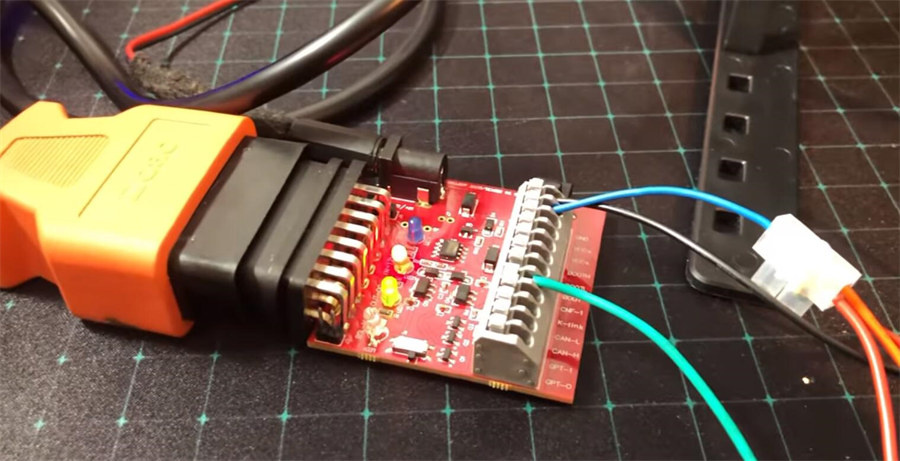

OTB 1.0 Adapter is a great help

Mercedes Sprinter with a round OBD plug that requires an adapter

Simple and easy with the help of OTB

foxflash read and write mercedes sprinter edc15c6 3 foxflash read and write mercedes sprinter edc15c6 4foxflash read and write mercedes sprinter edc15c6 5

The tabs are identical, one copied with MPPS and the other with Foxflash

foxflash read and write mercedes sprinter edc15c6 6

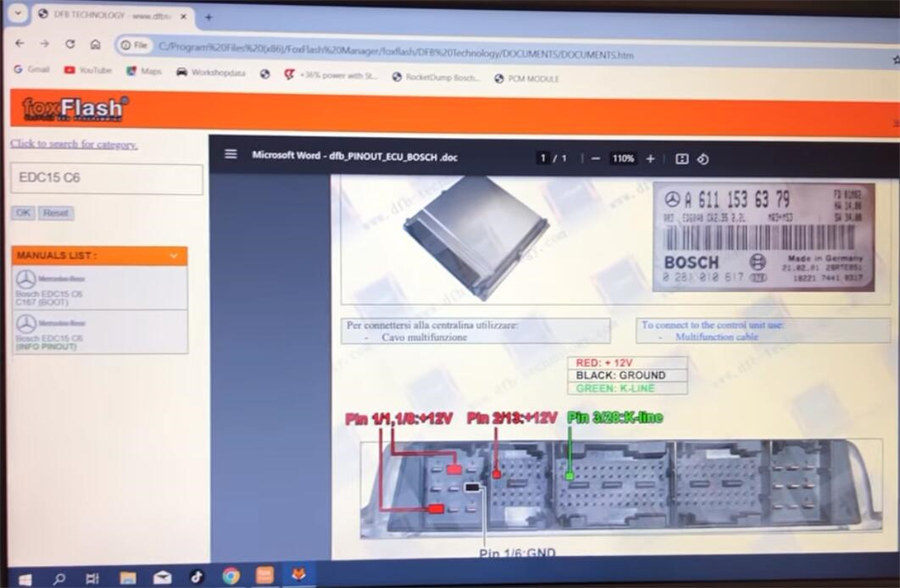

Foxflash OTB Adapter and Mercedes EDC15C6 Pinout diagram:

Pin 1/1, 1/8: +12V (Red)

Pin 2/13: +12V (Red)

Pin 1/6: GND (Black)

Pin 3/28: K-line (Green)

foxflash read and write mercedes sprinter edc15c6 7
