Use Foxflash to Turn Mercedes CLS 3.0 CDI 2008 EDC16CP31 EGR and FLAPS Off

Hello, everyone! Today we have a Mercedes CLS 3.0 CDI 2008 diesel 220 ECU, and want to use Foxflash ECU Programmer to clone and do EGR & FLAPS off.



We do the pinout of the EDC16CP31 on its six wires it is connected

We have the pinout below.

foxflash mercedes cls 3.0 egr off flaps off clone 1

I’ve already connected everything.

foxflash mercedes cls 3.0 egr off flaps off clone 2

Turn on the power

Run foxflash software, select Mercedes>> MPC563\4-Mercedes>> EDC16CP31

Click OK

foxflash mercedes cls 3.0 egr off flaps off clone 3

First click Connect

It will ask you to turn off the ignition

Internet connection Internet available

Turn on… So everything joined

foxflash mercedes cls 3.0 egr off flaps off clone 4

We need to calculate Flash and micro.

Then click Read Ext Flash

This is how we write Mercedes CLS. It’s original.

Click Save to save the data

foxflash mercedes cls 3.0 egr off flaps off clone 5

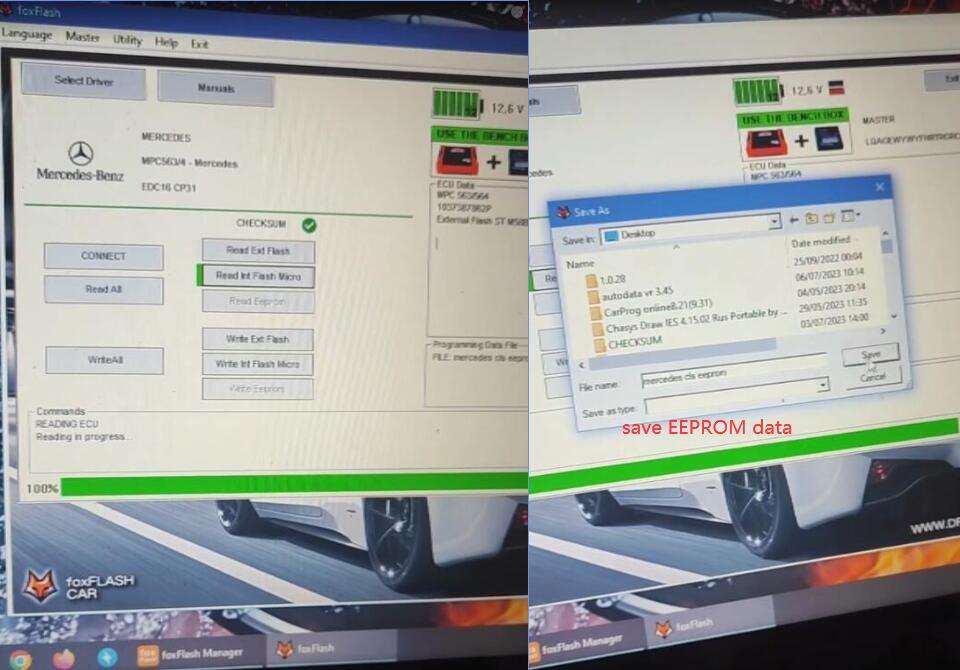

Next click Read Int Flash Micro

Click Save to save the micro (eeprom) data as well

foxflash mercedes cls 3.0 egr off flaps off clone 6

After that, click Davinci-EGR_DPF_DTC.exe

foxflash mercedes cls 3.0 egr off flaps off clone 7

Select the original ext flash data just saved

Detect successfully

foxflash mercedes cls 3.0 egr off flaps off clone 8

Continue to turn off EGR and FLAPS

Deactivate successfully as well

Save the file

foxflash mercedes cls 3.0 egr off flaps off clone 9

Click LSuite.exe

Select the EGR_FLAPS file just deactivated, and click Run

Recalculated successfully

Click Save to save this file

foxflash mercedes cls 3.0 egr off flaps off clone 10

Finally, back to foxflash software to write ext flash

Select the EGR_FLAPS file just recalculated to write

Checksum computed in writing, no need to correct

Click No and wait the ECU writing is successful.

foxflash mercedes cls 3.0 egr off flaps off clone 11 foxflash mercedes cls 3.0 egr off flaps off clone 12

Done!
